EXTRAS
ANYTHING MISSING?
Valves matched to the pump and installation dimensions ensure smooth operation, extend the service life of the DHW circulation pump and enable quick pump replacement.

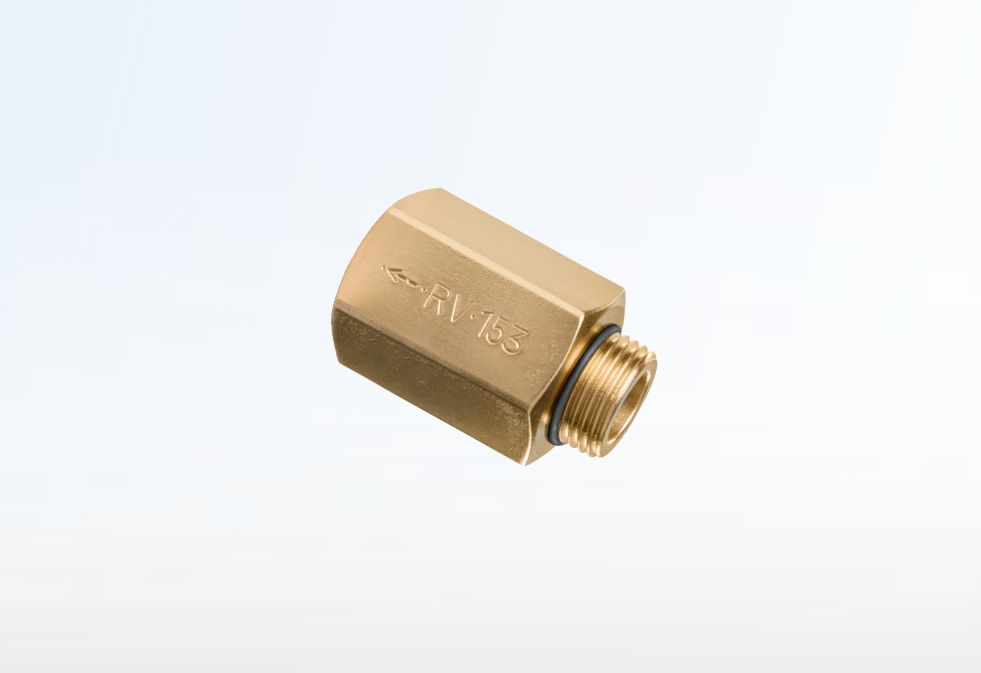

RV 153 NON-RETURN VALVE
| Nominal diameter | 1/2" male/1/2" female |
| Compatible with | BWO 155 R |
| Total installed length | 120 mm incl. pump housing |
| Order no. | 301-101-215 |

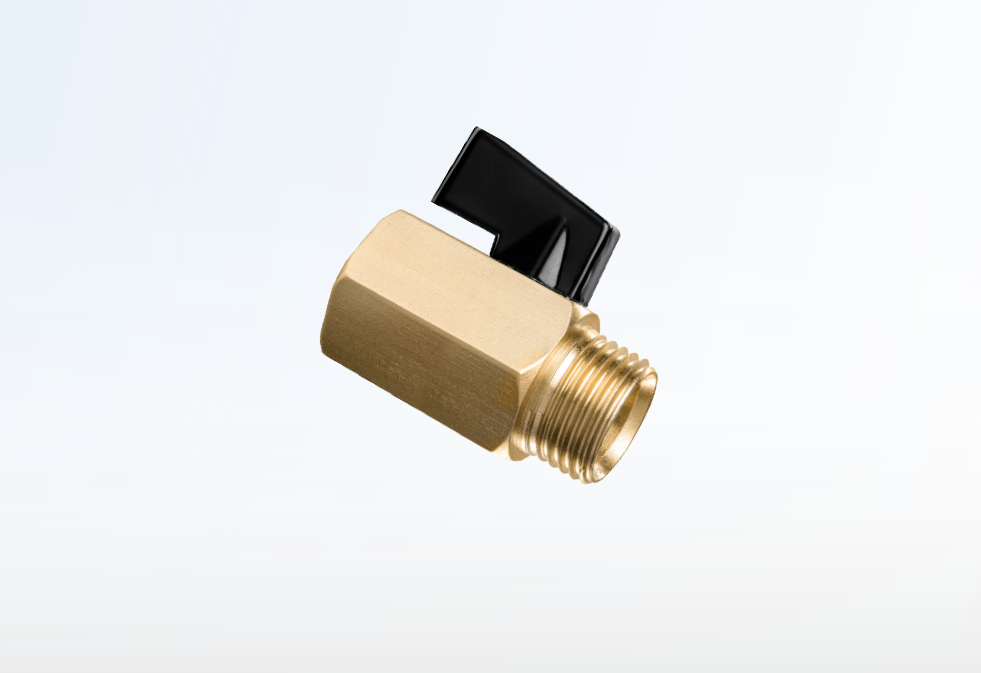

KV 150 BALL SHUT-OFF VALVE
| Nominal diameter | 1/2" male/1/2" female |
| Compatible with | BWO 155 R |
| Total installed length | 155 mm incl. pump housing and RV 153 |
| Order no. | 301-101-280 |

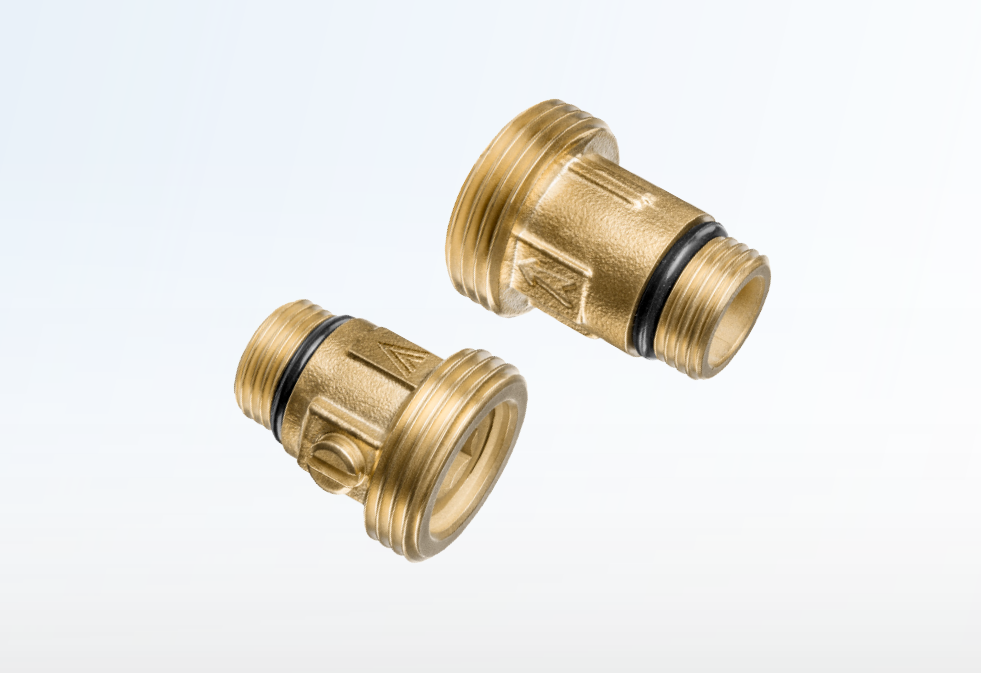

W-VALVE RETROFIT
| Nominal diameter | 1/2" male/1" male |
| Compatible with | BWO 155 R, replacement for WILO Star-Z 15/Star-Z NOVA |
| Total installed length | 138 mm incl. pump housing |
| Order no. | 399-101-100 |

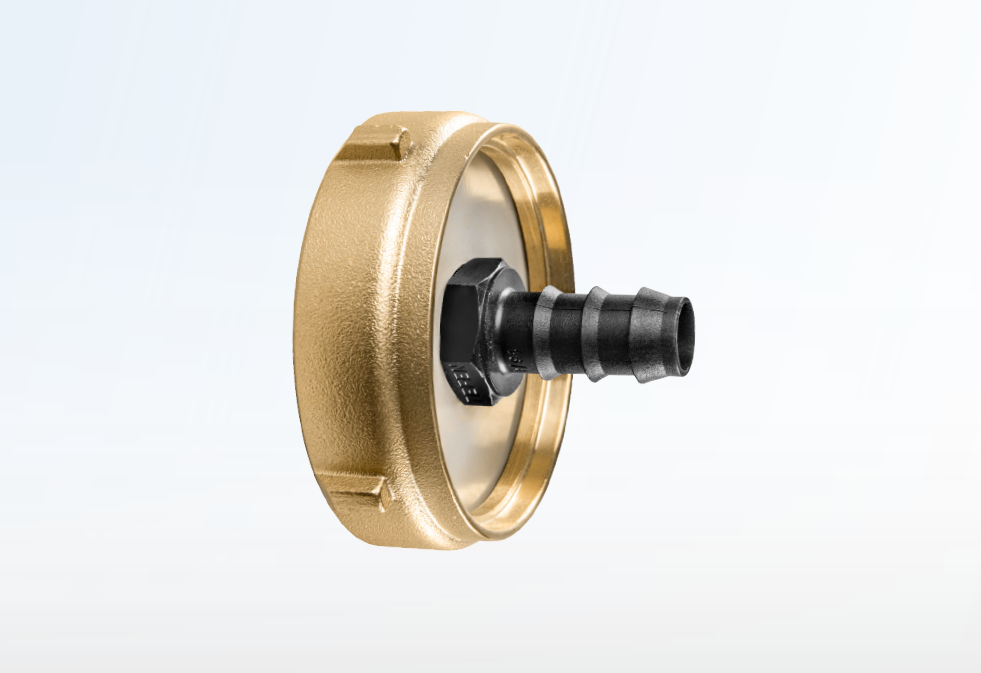

EF 150 VENTING FLANGE
| Compatible with | V- and R-pump housing thread, for flushing and venting the DHW circulation system |
| Order no. | 399-101-057 |

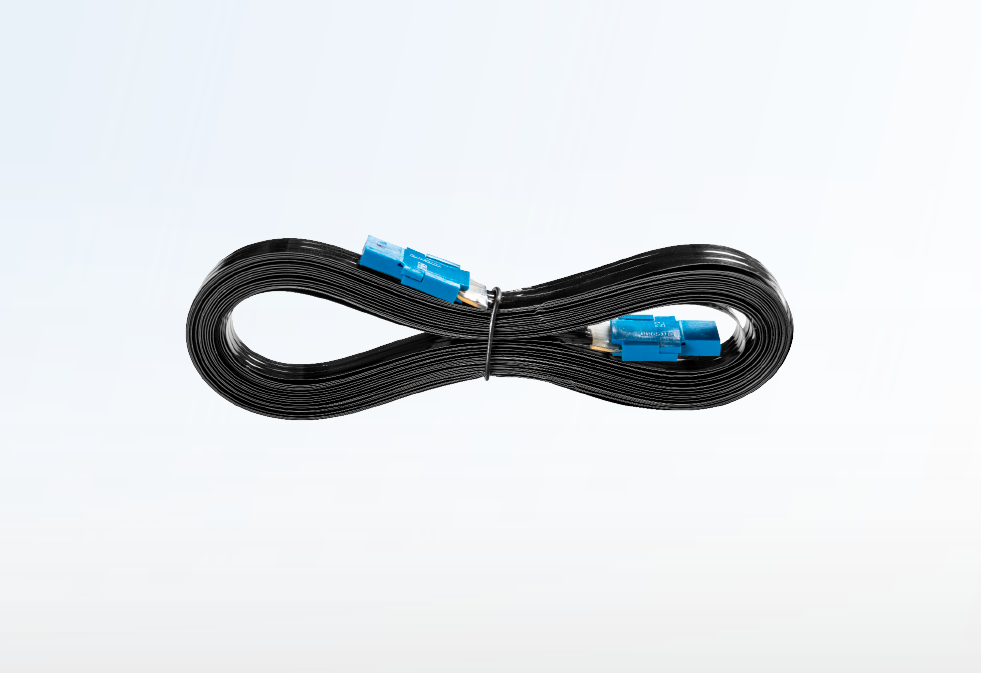

SENSOR CABLE
| Compatible with | BWO 155 SL pump |
| Equipment | Cable length 5.0 m |
| Order no. | 306-106-064 |
