Fitting Sets

☰

FITTING SETS

MAKE IT FIT

VORTEX includes fitting sets with BWO 155 V pumps as standard.  All fitting sets can also be ordered separately.
Press fitting sets are suitable for pipe connection systems for drinking water with copper press fitting technology, for copper pipes according to EN 1057, tested to DVGW Code of Practice W 534 with pipes according to DVGW Code of Practice GW 392 of brands SANCO® and WICU® from the company Wieland, TECU® from KME as well as "Profipress THERM" pipe from Viega, with the DVGW mark of approval.

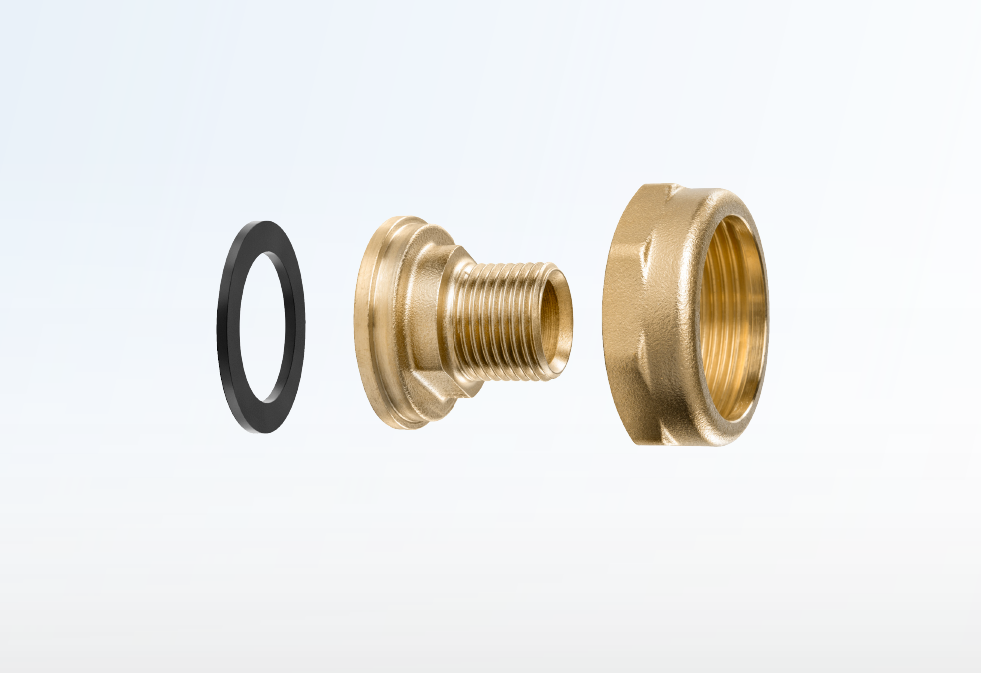

THREAD/SOLDER FITTING SET

THREAD/SOLDER FITTING SET

Nominal diameter1 1/4" x 1/2" male / Ø 15 mm female
Equipment2 fittings, 2 union nuts, 2 sealing rings
Order no.410-000-001

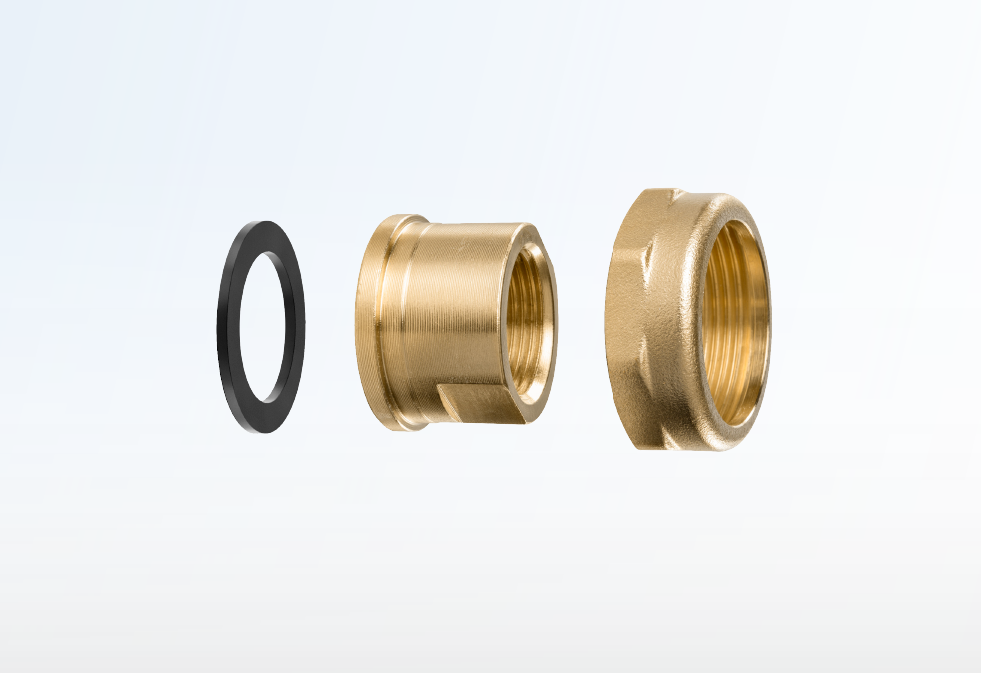

THREAD FITTING SET

THREAD FITTING SET

Nominal diameter1 1/4" x 3/4" female
Equipment2 fittings, 2 union nuts, 2 sealing rings
Order no.410-000-002

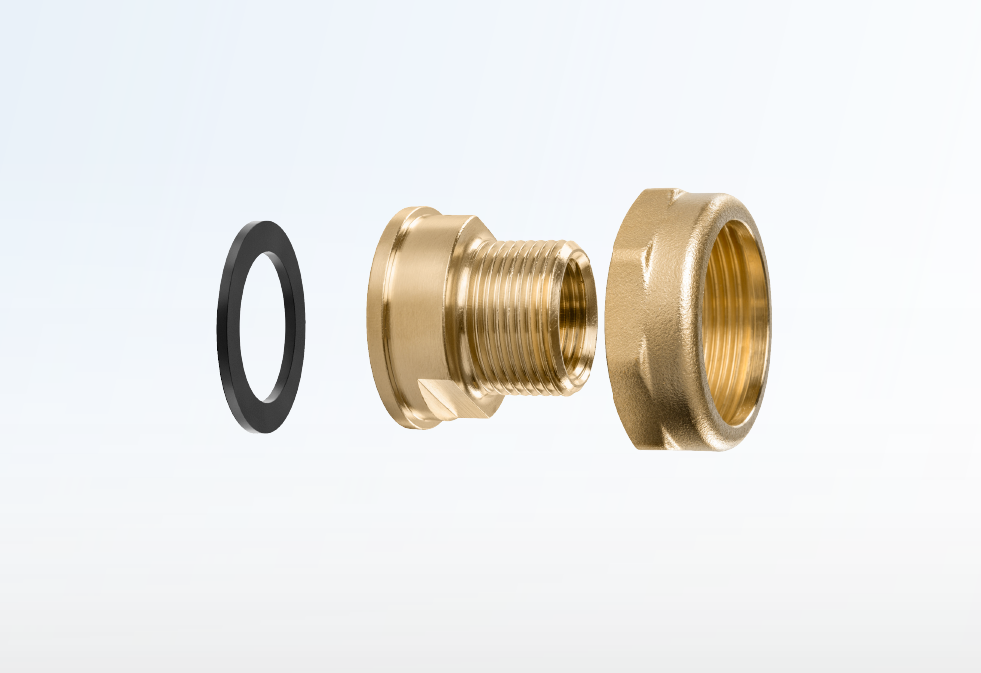

THREAD FITTING SET

THREAD FITTING SET

Nominal diameter1 1/4" x 1/2" female / 3/4" male
Equipment2 fittings, 2 union nuts, 2 sealing rings
Order no.410-000-003

SOLDER FITTING SET

SOLDER FITTING SET

Nominal diameter1 1/4" x Ø 22 mm female
Equipment2 fittings, 2 union nuts, 2 sealing rings
Order no.410-000-004

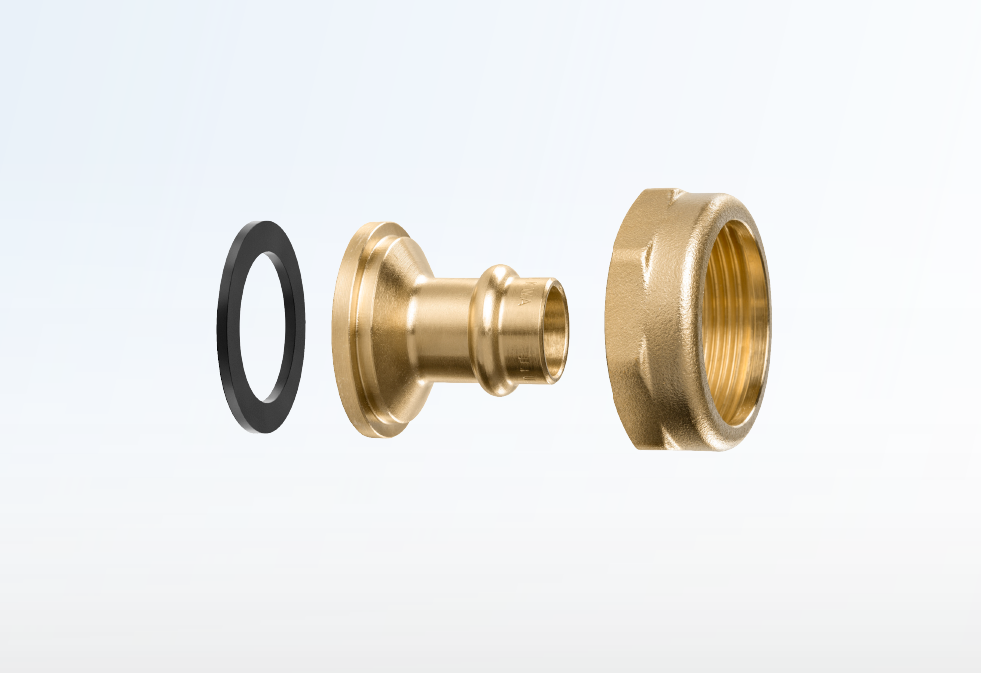

PRESS FITTING SET

PRESS FITTING SET

Nominal diameter1 1/4" x Ø 15 mm female
Equipment2 fittings, 2 union nuts, 2 sealing rings
Order no.399-103-040

PRESS FITTING SET

PRESS FITTING SET

Nominal diameter1/2"  male x Ø 15 mm female
Equipment2 fittings
Order no.399-103-041
