- For decentralised water circuits
- Adjustable speed
- Average power consumption for 24 hours of runtime/day: approx. 5 watts
- Digital operating instructions via the QR code on the front of the pump
12 V CONTINUOUS OPERATION MODULE
WHERE DO YOU NEED IT?
Even in remote mountain huts and holiday homes with a decentralised DC supply, people still want domestic hot water nowadays. The pump can also be used in mobile heating circuits, such as those found in boats, caravans and mobile homes.
*Heat circuit pumps in means of transport for persons or goods are not subject to the Ecodesign Directive (ErP) 2009/125/EC (Regulation (EC) 622/2012).
With digital operating instructions for the first time
Less paper and always to hand

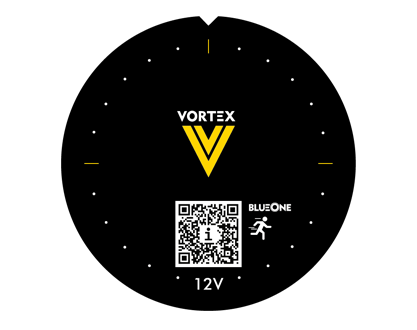

With our BlueOne series, you now receive the digital operating instructions directly on your smartphone. And all without an app. Simply scan the QR code on the front of the module and immediately access the chapter overview. Always with you and always up to date.
> PUMP HOUSING
V-pump housing
1 1/4" male connection thread; fitting set, with 1/2" male screw/solder fitting/ø 15 mm female, non-return valve, cut-off valve, insulation shell
R-pump housing
1/2" female connection thread, insulation shell
DRIVE
Permanent magnet drive
The BlueOne DHW circulation pump generation is driven by a highly efficient, electronically commutated DC motor. A voltage transformer is integrated in the module cap for AC operation. All pumps have continuous manual speed adjustment.
Spherical motor technology
The shaftless spherical motor does not feature a revolving bearing shaft. Instead, the stator transfers the rotating magnetic field directly to the permanent magnet rotor on a fixed bearing pin. The rotor bearing is self-adjusting and lubricated by the water. The rotor thus runs with zero play and is virtually noise free. Water carrying parts can be easily cleaned if necessary. The rotor can be replaced when required.
CONTROL MODULE
The pump runs around the clock.
SHAFTLESS, STALL CURRENT RESISTANT SPHERICAL MOTOR WITH ECM TECHNOLOGY
Speed |
2000 – 3000 rpm |
Max. delivery head |
1.3 mWC |
Max. pump rate |
950 l/h |
IP rating |
IP 44 |
Pressure resistance |
10 bar |
Temperature resistance |
95°C |
Materials |
Drinking water compliant |
Power connection |
12 V DC |
Power consumption |
2 – 7 W |
Fuse protection |
2A |
NAME |
PUMP HOUSING |
FITTING SET |
| BWO 155 V 12V | V | 1/2" male / ø 15 mm female |
| BWO 155 V oV 12V | V | without |
| BWO 155 V 3/4“i 12V | V | 3/4" female |
| BWO 155 V 1/2“i/3/4“a 12V | V | 1/2" female / 3/4" male |
| BWO 155 V P15 12V | V | ø 15 mm female – P15* |
| BWO 155 R 12V | R | without |
| UNIVERSAL-MOTOR BWO 155 12V | without | without |
*Suitable for copper pipe connection systems with press fitting technology for drinking water installations, for copper pipes according to EN 1057, tested to DVGW Code of Practice W 534 with pipes according to DVGW Code of Practice GW 392 of brands SANCO® and WICU® from the company KM Europa Metal AG as well as "Profipress THERM" pipe from Viega, with the DVGW mark of approval.
QUALITY MADE IN GERMANY
The VORTEX service culture: direct, personal, competent. Because customer satisfaction guarantees our success. At VORTEX, we maximise customer service through flexibility, and product quality through innovativeness.
All of our BWO 155 pumps come with a five year warranty.
Downloads
Q/H-Diagram
P/Q-Diagram
