Self-Learning Module

☰
  • AUTOlearn technology
  • Autostart function
  • Weekend/holiday detection
  • 5 comfort settings
  • Operating display
  • Continuous operation and permanently off functions
  • Anti-legionella function
  • Adjustable speed
  • Average power consumption for approx. 2.5 hours of runtime/day: less than 1 watt
AUTOLEARN TECHNOLOGY

AUTOLEARN TECHNOLOGY

HOW IT WORKS

Through a temperature sensor on the flow side, the pump detects the days and times when the consumer requires hot water. The pump system notes this and predictively provides hot water at those times after a two-week learning phase. This means maximum convenience with the lowest possible energy consumption.

What do you need to do?
Nothing. The pump automatically adjusts to the prevailing usage patterns. The comfort setting can be regulated if necessary.

Save even more
Select comfort setting 1 for maximum energy savings – the pump only runs on request (when a hot water tap is briefly opened).

PUMP HOUSING

V-pump housing

1 1/4" male connection thread; fitting set, with 1/2" male screw/solder fitting/ø 15 mm female, non-return valve, cut-off valve, insulation shell

R-pump housing

1/2" female connection thread, insulation shell



DRIVE

Permanent magnet drive

The BlueOne DHW circulation pump generation is driven by a highly efficient, electronically commutated DC motor. A voltage transformer is integrated in the module cap for AC operation. All pumps have continuous manual speed adjustment.

Spherical motor technology

The shaftless spherical motor does not feature a revolving bearing shaft. Instead, the stator transfers the rotating magnetic field directly to the permanent magnet rotor on a fixed bearing pin. The rotor bearing is self-adjusting and lubricated by the water. The rotor thus runs with zero play and is virtually noise free. Water carrying parts can be easily cleaned if necessary. The rotor can be replaced when required.

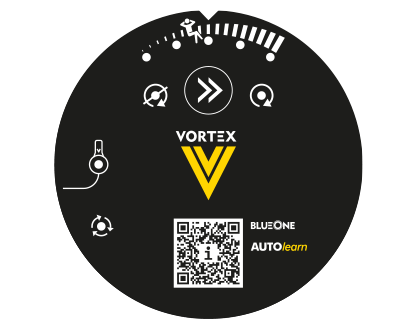

CONTROL MODULE

SL – self-learning module

The pump runs predictively according to the learned draw-off times. The system automatically updates on a constant basis as draw-off times change.

  • AUTOlearn technology
  • Predictive provision of hot water
  • 5 comfort settings
  • Weekend/holiday detection
  • Daily flushing if the user is away to ensure hygienic pipework
  • Automatic disinfection run detection


  Replacement Overview

SHAFTLESS, STALl CURRENT RESISTANT SPHERICAL MOTOR WITH ECM TECHNOLOGY

Speed

 2000 – 3000 rpm

Max. delivery head

 1.3 mWC

Max. pump rate

950 l/h

IP rating

 IP 44

Pressure resistance

 10  bar

Temperature resistance

 95°C

Materials

 Drinking water compliant

Power connection

 1~115–230 V/50–60 Hz

Power consumption

 2.5 – 9 W





NAME

PUMP HOUSING

FITTING SET
BWO 155 V SL V 1/2" male / ø 15 mm female
BWO 155 V oV SL Vwithout
BWO 155 V 3/4“i SL V 3/4" female
BWO 155 V 1/2“i/3/4“a SL V 1/2" female / 3/4" male
BWO 155 V LF22 SL V ø 22 mm female
BWO 155 V P15 SL V ø 15 mm female – P15*
BWO 155 R SL R without
BWO 155 R P15 SL R 1/2" male / ø 15 mm female – P15*
UNIVERSAL-MOTOR BWO 155 SL without without


*Suitable for pipe connection systems for drinking water with copper press fitting technology, for copper pipes according to EN 1057, tested to DVGW Code of Practice W 534 with pipes according to DVGW Code of Practice GW 392 of brands SANCO® and WICU® from the company Wieland, TECU® from KME as well as "Profipress THERM" pipe from Viega, with the DVGW mark of approval.

QUALITY MADE IN GERMANY

The VORTEX service culture: direct, personal, competent. Because customer satisfaction guarantees our success. At VORTEX, we maximise customer service through flexibility, and product quality through innovativeness.
All of our BWO 155 pumps come with a five year warranty.
