Manual Timer Module

  • 24-hour clock face
  • Smallest increment – 15 minutes
  • Continuous operation and permanently off functions
  • Adjustable speed
  • Average power consumption for approx. 12 hours of runtime/day: less than 3 watts

TIMER MODULE

HOW IT WORKS

Enjoy hot water at the same time every day with the timer module. Turn the timer dial to the current time and push the tripper pins for the required runtime outwards. The operating mode switch must be set to the "Time" icon. That's it!

Tip!

Don't push out all tripper pins for the required runtime. Simulate a thermostat by using only every other segment.

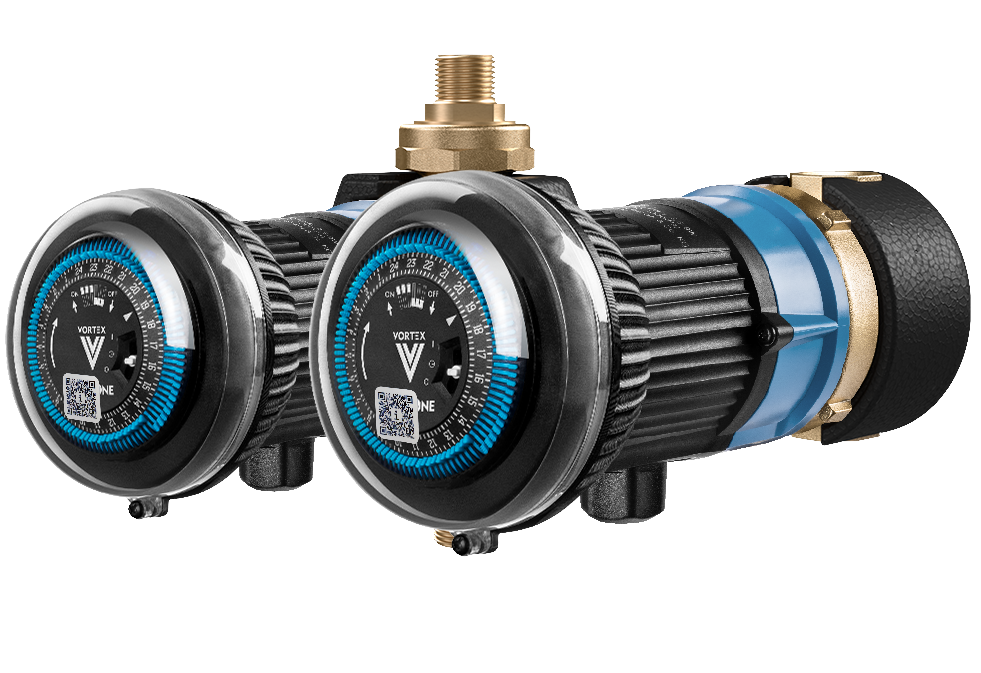

PUMP HOUSING

V-pump housing

1 1/4" male connection thread; fitting set, with 1/2" male screw/solder fitting/ø 15 mm female, non-return valve, cut-off valve, insulation shell

R-pump housing

1/2" female connection thread, insulation shell



DRIVE

Permanent magnet drive

The BlueOne DHW circulation pump generation is driven by a highly efficient, electronically commutated DC motor. A voltage transformer is integrated in the module cap for AC operation. All pumps have continuous manual speed adjustment.

Spherical motor technology

The shaftless spherical motor does not feature a revolving bearing shaft. Instead, the stator transfers the rotating magnetic field directly to the permanent magnet rotor on a fixed bearing pin. The rotor bearing is self-adjusting and lubricated by the water. The rotor thus runs with zero play and is virtually noise free. Water carrying parts can be easily cleaned if necessary. The rotor can be replaced when required.



CONTROL MODULE

ZM – manual timer

The pump runs every day at the set times. The set runtimes are retained (non-volatile) in case of power failure.

  • 24-hour clock face
  • Automatic disinfection run detection


  Replacement Overview

SHAFTLESS, BLOCKING CURRENT RESISTANT SPHERICAL MOTOR WITH ECM TECHNOLOGY

Speed

2000 – 3000 rpm

Power consumption

1.3 mWC

Max. pump rate

950 l/h

IP rating

IP 42

Pressure resistance

10 bar

Temperature resistance

95°C

Materials

Drinking water and UBA compliant

Power connection

1~230 V / 50 Hz

Power consumption

2,5 – 9 W





NAME

PUMP HOUSING

FITTING SET

BWO 155 V ZM V 1/2" male / ø 15 mm female
BWO 155 V oV ZM Vwithout
BWO 155 V 3/4“i ZM V 3/4" female
BWO 155 V 1/2“i/3/4“a ZM V 1/2" female / 3/4" male
BWO 155 V LF22 ZM V ø 22 mm female
BWO 155 V P15 ZM V ø 15 mm female – P15*
BWO 155 R ZM R without
BWO 155 R P15 ZM R 1/2" male / ø 15 mm female – P15*
UNIVERSAL-MOTOR BWO 155 ZM without without


*Suitable for pipe connection systems for drinking water with copper press fitting technology, for copper pipes according to EN 1057, tested to DVGW Code of Practice W 534 with pipes according to DVGW Code of Practice GW 392 of brands SANCO® and WICU® from the company Wieland, TECU® from KME as well as "Profipress THERM" pipe from Viega, with the DVGW mark of approval.

QUALITY MADE IN GERMANY

The VORTEX service culture: direct, personal, competent. Because customer satisfaction guarantees our success. At VORTEX, we maximise customer service through flexibility, and product quality through innovativeness.
All of our BWO 155 pumps come with a five year warranty.
