BLUEONE DHW CIRCULATION PUMPS
UNIVERSAL – SIMPLE – HIGHLY EFFICIENT
The BlueOne drinking water circulation pump series developed by Deutsche VORTEX is the unique pump series with spherical motor principle and highly efficient ECM technology. The proverbial VORTEX quality "Made in Germany" stands for maximum reliability and a long service life. Our products are also exemplary in terms of environmental and energy policy.
With many different control variants, the BlueOne pumps enable high-cost savings while at the same time providing the greatest possible comfort. The BlueOne BWO 155 series is therefore predestined for use in drinking water circulation systems for detached and semi-detached houses. Depending on the pipe network design, the pumps can also be used in smaller apartment buildings.
The BlueOne XL – BWO 200 was developed for pipe cross sections. This drinking water circulation pump is designed for compact pipe networks with increased volume flow requirements and is one of the most efficient models in this performance class with an EC motor in spherical motor design.

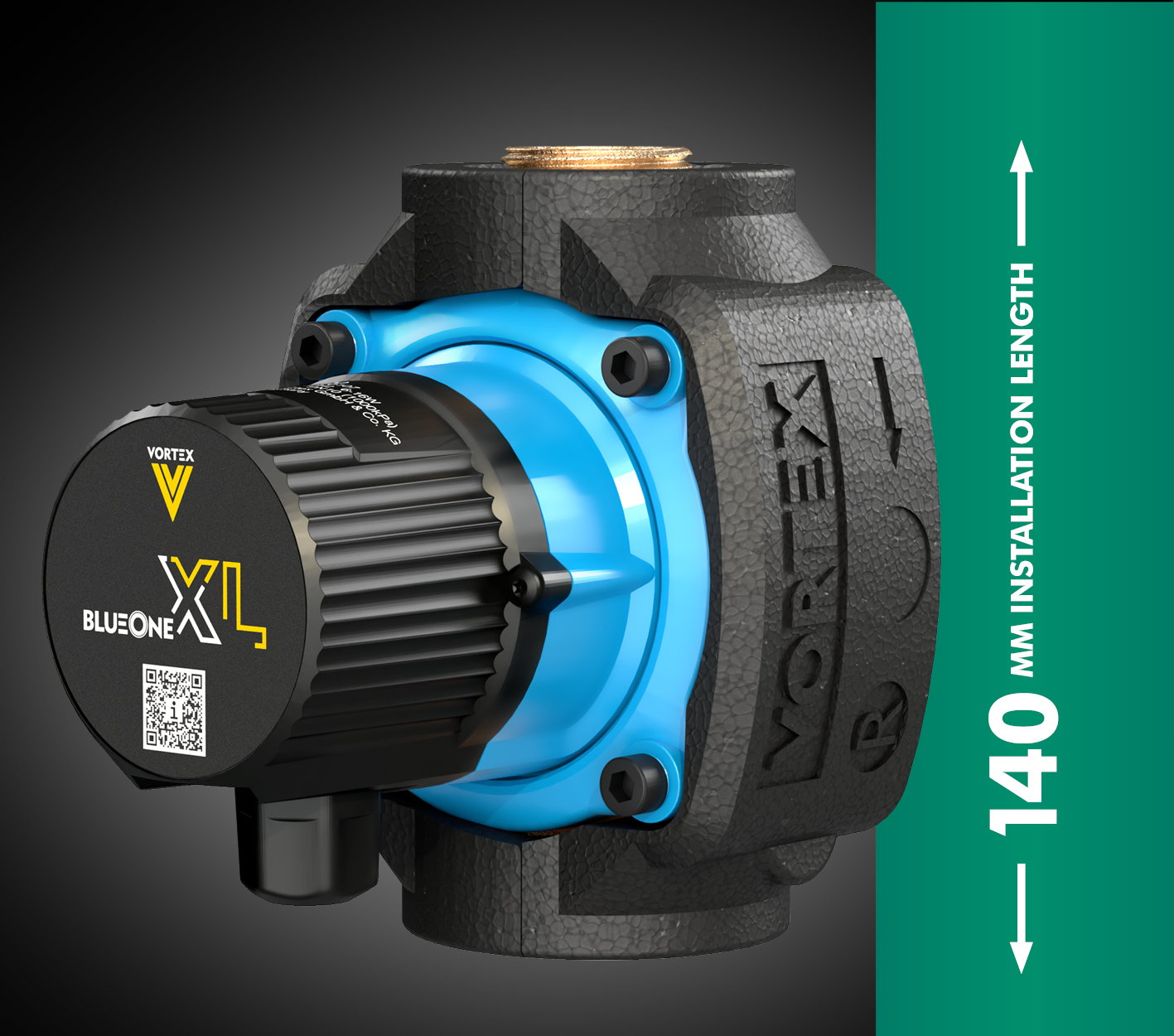

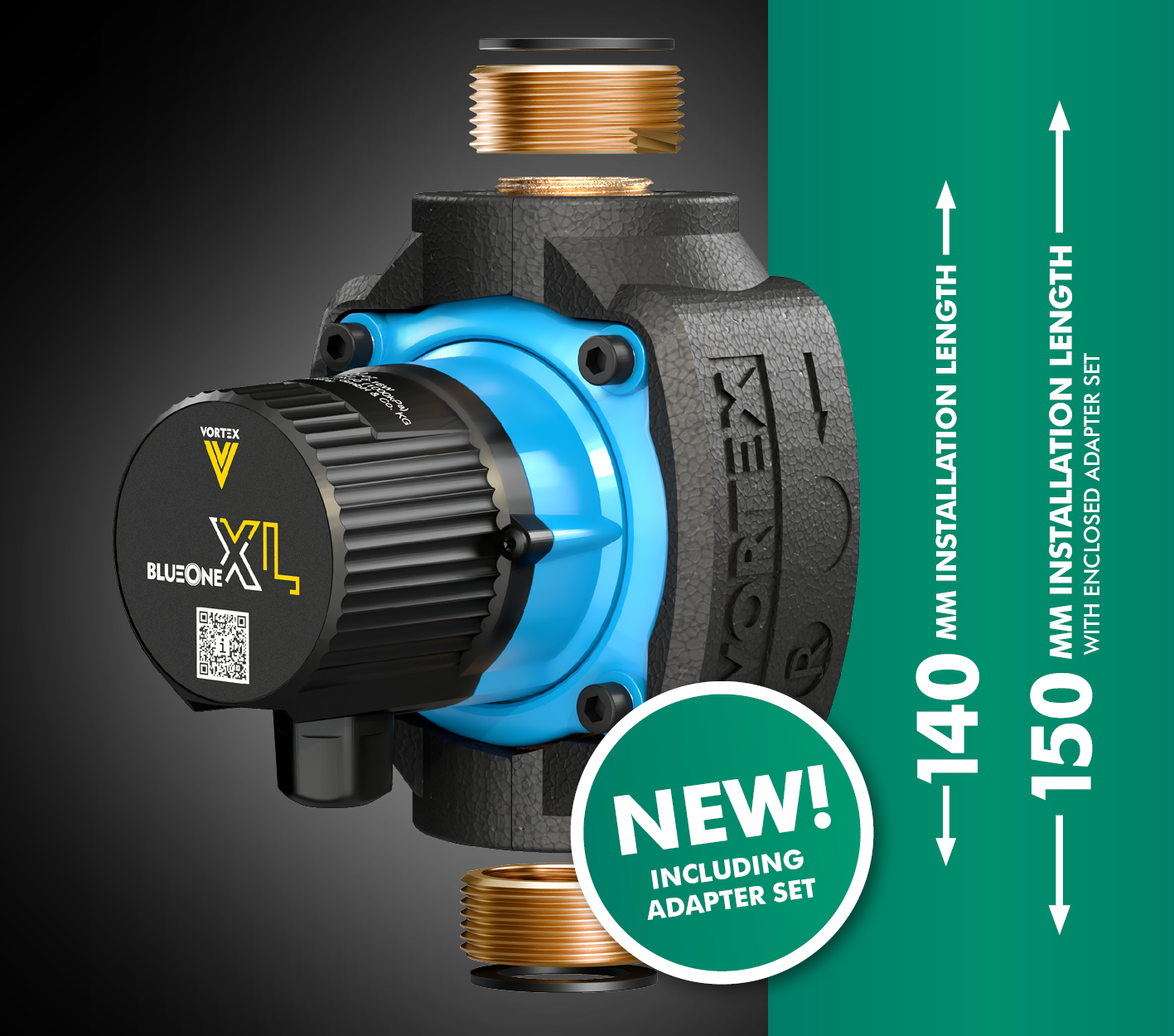

BLUEONE XL – BWO 200
The new DHW circulation pump BlueOne XL BWO 200 is suitable for compact pipe systems with higher flow demands.
MAXIMUM ENERGY SAVINGS

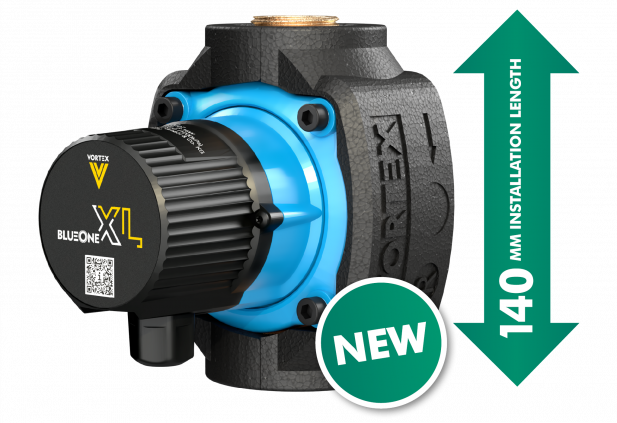

THE NEW BLUEONE XL – BWO 200

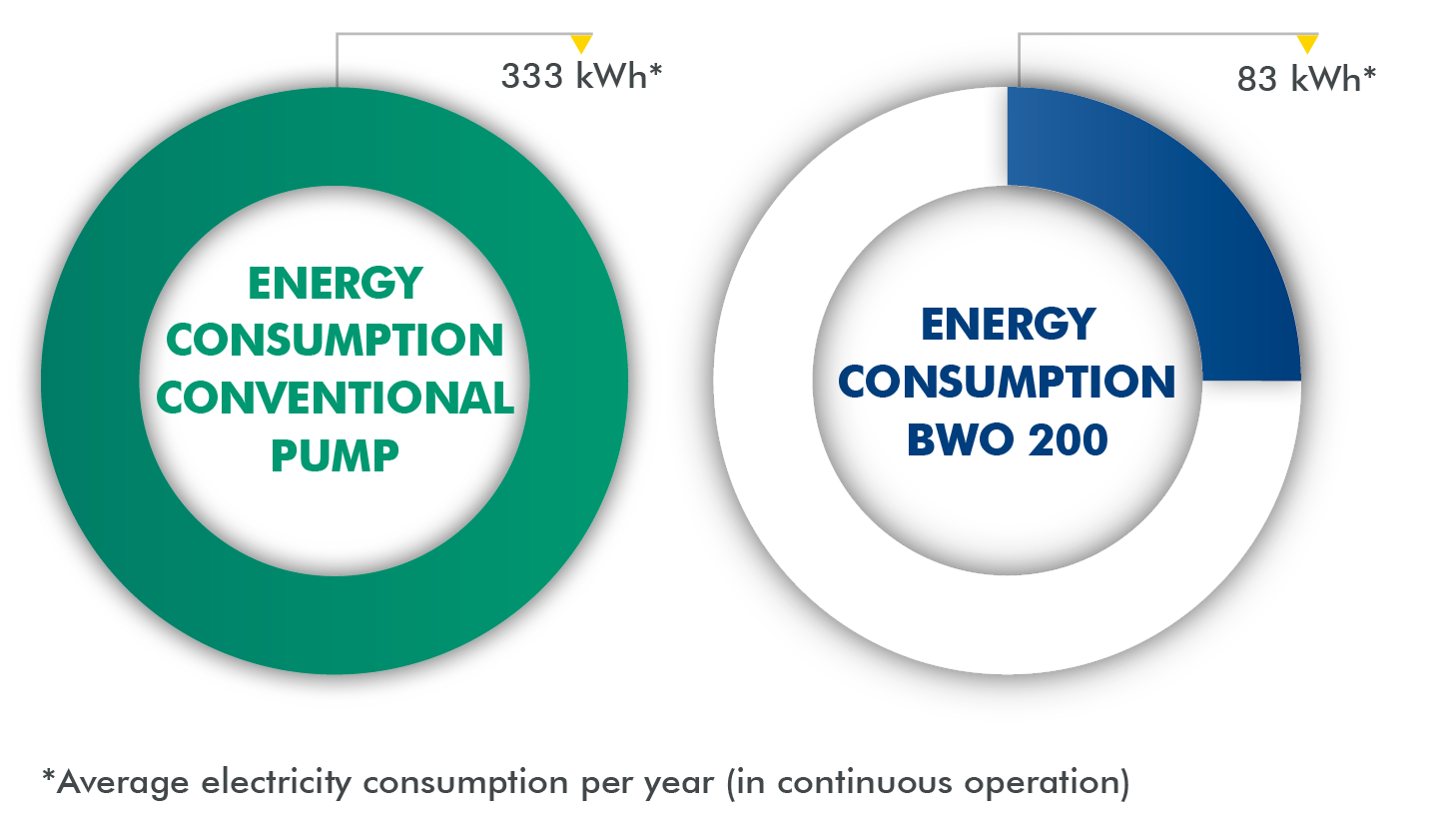

The BlueOne XL pump roughly uses 25% of the energy in comparison to pumps with conventional asynchronous motors.
INTELLIGENT CONVENIENCE
INSTANT HOT WATER

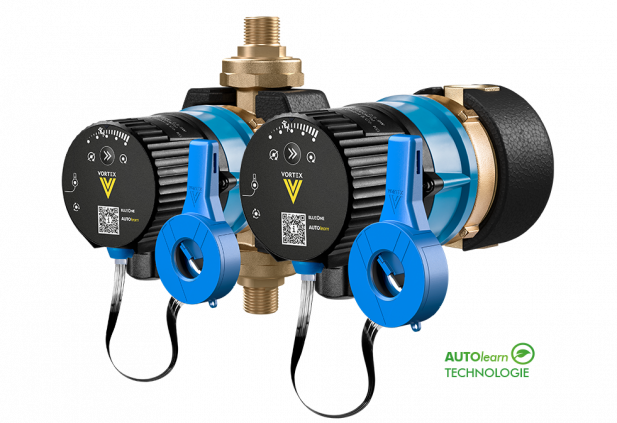

Pumps with AUTOlearn technology quickly learn the times at which consumers tend to need hot water. The pump will automatically adapt to any change in usage patterns.
Through a temperature sensor on the flow side, the BWO 155 SL with self-learning module detects when the consumer requires hot water. The system notes this and predictively provides hot water at these times each day. When hot water is not needed, the pump does not run. This creates huge potential for savings in terms of heat loss and water and power consumption.
TIMER MODULE
MANUAL OR DIGITAL
There are two timer models to choose from.

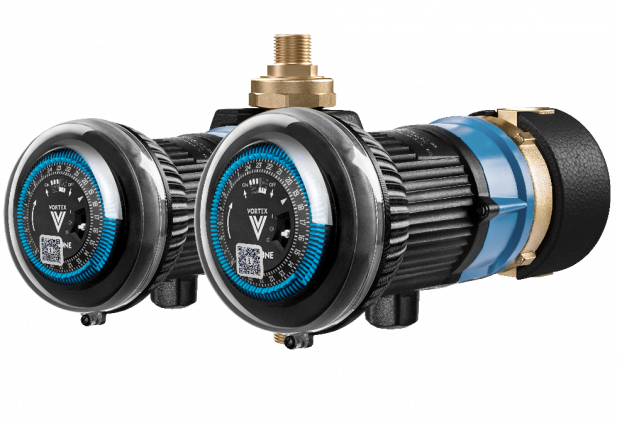

With a conventional clock, depressed tripper pins indicate the runtimes. The smallest increment is 15 minutes.

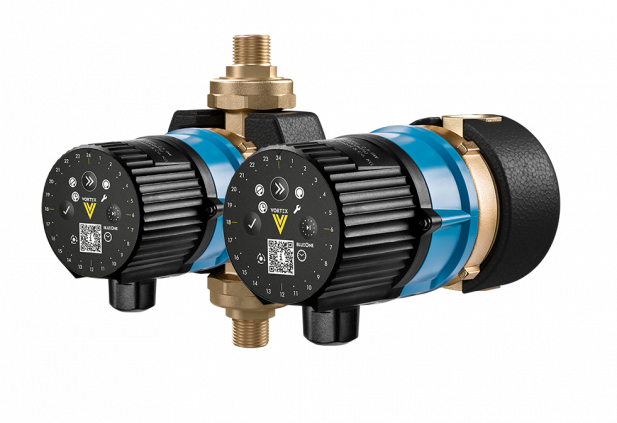

In the model with a digital clock, LEDs indicate the programmed runtimes. The bright LEDs can also be easily read in relatively dark rooms. This makes subsequent adjustment easier. Each LED indicates a pump runtime of 30 minutes.
EXTREMELY ECONOMICAL
ENERGY SAVINGS OF UP TO 90 %
BLUEONE PUMPS FROM VORTEX
Reduction in energy loss in a typical detached house of up to 90 % per year compared to a domestic hot water circulation pump in continuous operation.
In just two years or so, the purchase of a pump with AUTOlearn technology will have already paid for itself in comparison to conventional modes of operation.

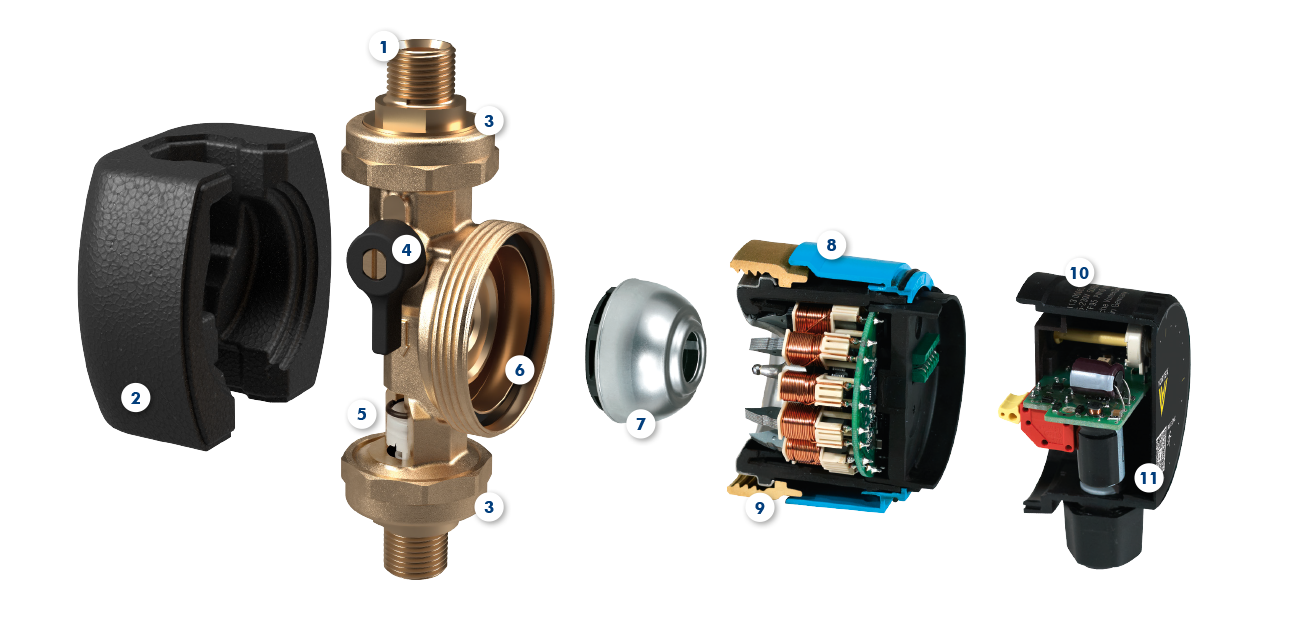

MODULAR PUMP ASSEMBLY
PUMP HOUSING
1. PUMP HOUSING
- V-pump housing with R 1 1/4" male thread, non-return valve and ball shut-off valve
- Option of R-pump housing with R 1/2" female thread (not shown)
2. INSULATION SHELL
- Avoids unnecessary heat loss from the pump housing
3. UNION FITTING
- For screwing, soldering or press fitting
Standard with V-pump housing
4. BALL SHUT-OFF VALVE
5. NON-RETURN VALVE
- Defines the direction of flow
- Prevents gravity circulation
- Ensures the DHW circulation system works properly
6. SEALING RING
UNIVERSAL MOTOR
7. PERMANENT MAGNET ROTOR
- Simple to clean and replace
8. PERMANENT MOTOR
- Electronically commutated DC motor (ECM technology)
- Also available as a 12 V DC version
- Original spherical motor principle from Vortex
- Dry-run protection – automatically interrupts rotor operation
- Compatible with all commercially available pump housings, regardless of year of production and manufacturer
9. UNION NUT
- Enables quick separation of the motor from the pump housing
- For easy cleaning and descaling
CONTROL MODULE OR MODULE CAP
10. MODULE CAP
- As a continuous operation module or with control (self-learning module, timer, control thermostat)
- Adjustable speed
- Cable terminal block
- Assembly with hexagon socket screws
11. CABLE BOX (NOT SHOWN)
- Only for BWO 155 SL
- With temperature contact sensor for the flow pipe
- Cable length 2.5 m
DRY-RUN PROTECTION
The absence of water in the pump housing is automatically detected. Rotor operation is then repeatedly interrupted.
ALWAYS COMPATIBLE
Motor replacement made easy: the new universal motors are compatible with all commercially available pump housings.
EXTREMELY ECONOMICAL
Low power consumption (2.5 – 9 watts) – yet still powerful (0.6 – max. 1.3 mWC).
EXTREMELY QUIET
The pump operates almost silently, thanks to the special design of the electronically commutated DC motor.
EXTREMELY COMPACT
VORTEX has reduced the length of the motor to an absolute minimum – the perfect solution for tricky spaces.
ADJUSTABLE SPEED
Done in a flash: adjust the energy consumption and output.
EASY TO OPERATE
One-touch technology for all pumps with a control module. Your benefit: you control all functions at the press of a button.
SIMPLE CONNECTION
The pump motor can be replaced using only a few tools. No tools at all are required for the cable connection.
UNRESTRICTED WATER HARDNESS
Hard water is no problem for the VORTEX spherical motor. There are no restrictions at higher water temperatures.
