BWO 200

☰

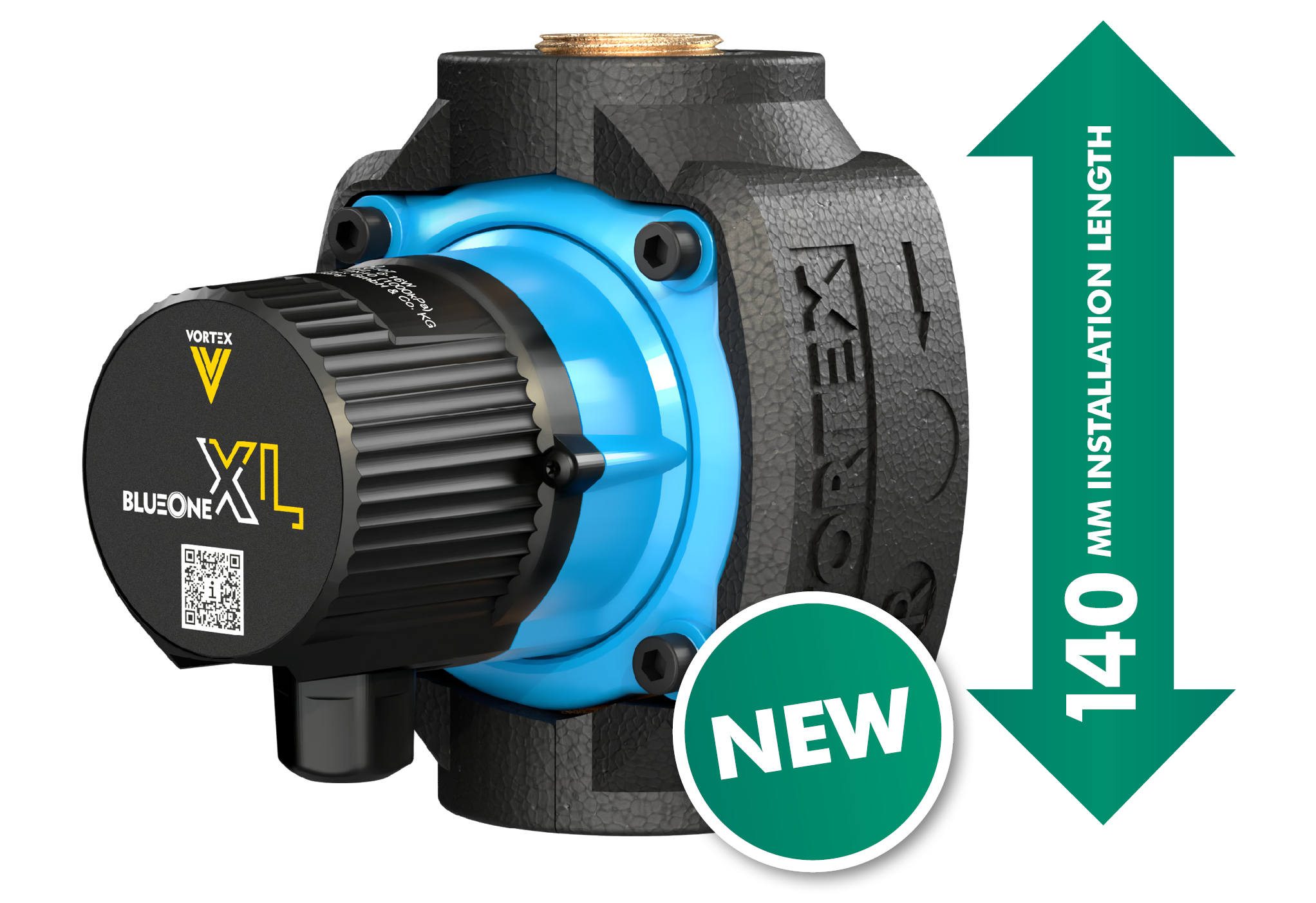

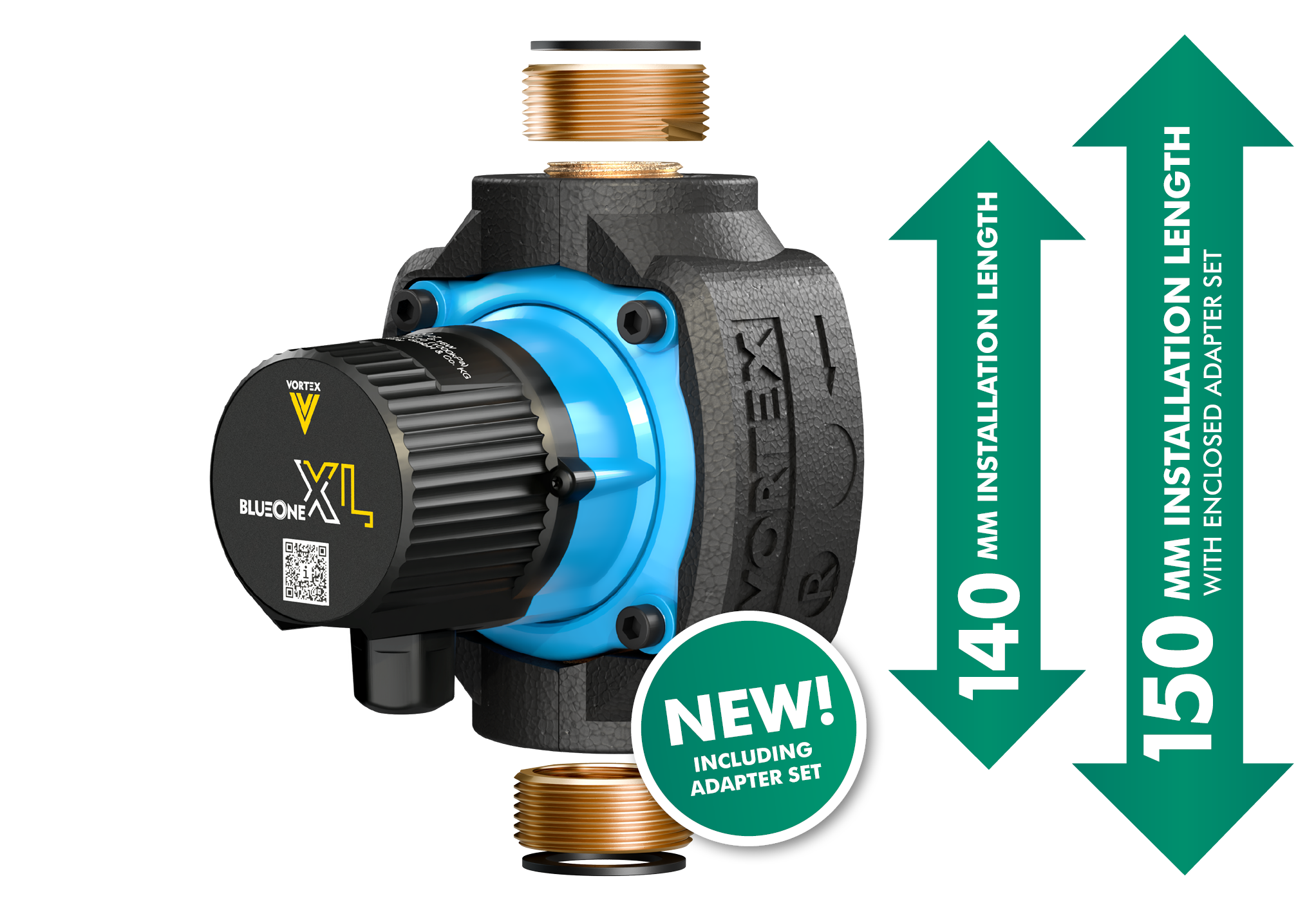

BLUEONE XL – BWO 200 with adapter set

BLUEONE XL – BWO 200 with adapter set

For compact pipe systems with higher flow demands

The new DHW circulation pump BWO 200 is suitable for compact pipe systems requiring an increased flow rate (up to 1.500 l/h).

Installation length: 140 mm/150 mm

The pump is supplied including an adapter set:
2 × fittings 1″ female thread / 1¼″ male thread, 4 × flat gaskets.
Total installation length with adapter set: 150 mm.



 Higher Volume Flow


  • For continuous operation
  • Average power consumption 9.5 Watt
  • Installation length140 mm: compatible with Wilo-Star-Z 20/1
  • Installation length 150 mm (with adapter set): compatible with Grundfos UP 20-15 N 150 and Biral CompAX 20-1 150 BLUE.
  • Integrated ¼“-connection for air bleed fitting
  • Highly efficient EC-motor
  • Operates at any water hardnesses
  • Digital user manual via the QR code on the front of the pump

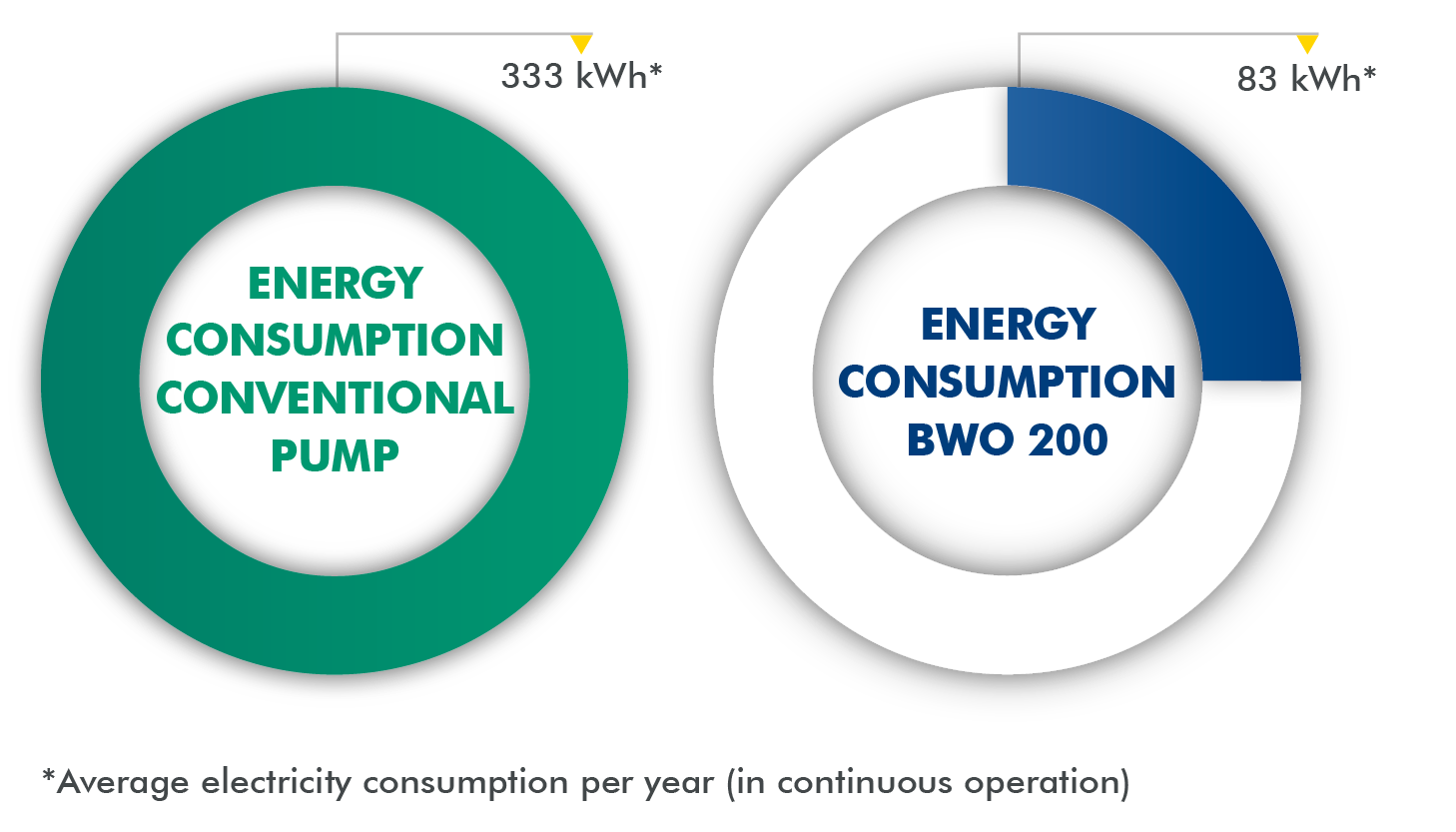

Maximum Energy savings

The BlueOne XL pump roughly uses 25% of the energy in comparison to pumps with conventional asynchronous motors.

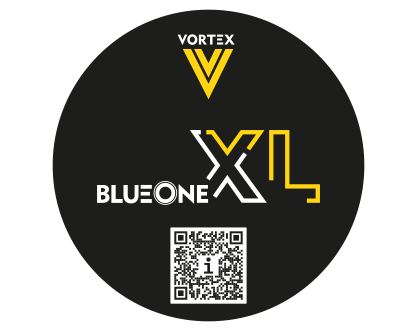

Digital Instruction Manual

Less paper and always to hand

You now receive the digital operating instructions directly on your smartphone. And all without an app. Simply scan the QR code on the front of the module and immediately access the chapter overview. Always with you and always up to date.

> Digital operating instruction

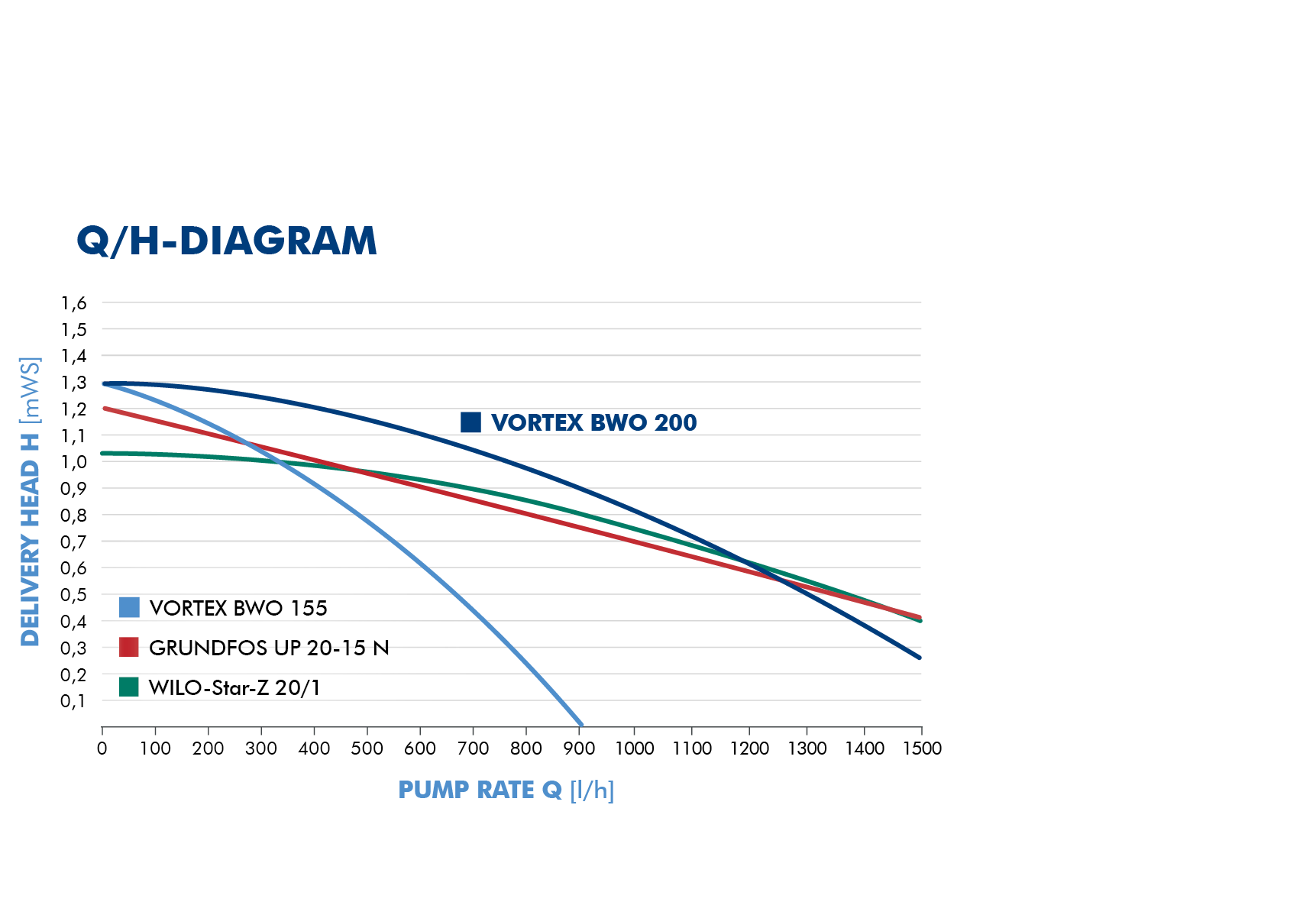

Diagram BWO 200

Pump housing

1" external connection thread, with insulation shell, bleeding screw and adapterset.

1¼″ external thread with included adapter set.



Drive

Permanent magnet drive

The BlueOne DHW circulation pump BWO 200 is driven by a highly efficient, electronically commutated DC motor. A voltage transformer is integrated in the module cap for AC operation.

Spherical motor technology

The shaftless spherical motor does not feature a revolving bearing shaft. Instead, the stator transfers the rotating magnetic field directly to the permanent magnet rotor on a fixed bearing pin. The rotor bearing is self-adjusting and lubricated by the water. The rotor thus runs with zero play and is virtually noise free. Water carrying parts can be easily cleaned if necessary. The rotor can be replaced when required.



CONTROL MODULE

The pump is designed for continuous running. It can be regulated by time if connected to an external controller.

Max. delivery head / Flow

 1,3 mWC / 1.500 l/h

Liquid

 Drinking water 2 – 95 °C, permissible water hardness

IP rating

 IP44

Pressure resistance

 10 bar

Temperature resistance

 95 °C

Materials

 Drinking water compliant

Power connection

 1~230 V / 50 Hz

Max. / average power consumption

 12 W / 9,5 W



DescriptionPump housingFitting set
BWO 2001" external thread
1¼″ external thread with included adapter set.
without
