BLUEONE UNIVERSAL MOTOR
QUALITY MADE IN GERMANY
All BlueOne universal motors are designed according to the original spherical motor principle from VORTEX and are equipped with highly efficient ECM technology.
BlueOne universal motors are compatible with all pump housings with a union fitting. They work just as quietly and efficiently in the pump housings of other manufacturers.
The rotor and sealing ring are included as standard, along with the cable box for the SL control module.
COMPATIBLE WITH ANY PUMP HOUSING
REGARDLESS OF MANUFACTURER
- Fast replacement of old motors
- Available with all control modules

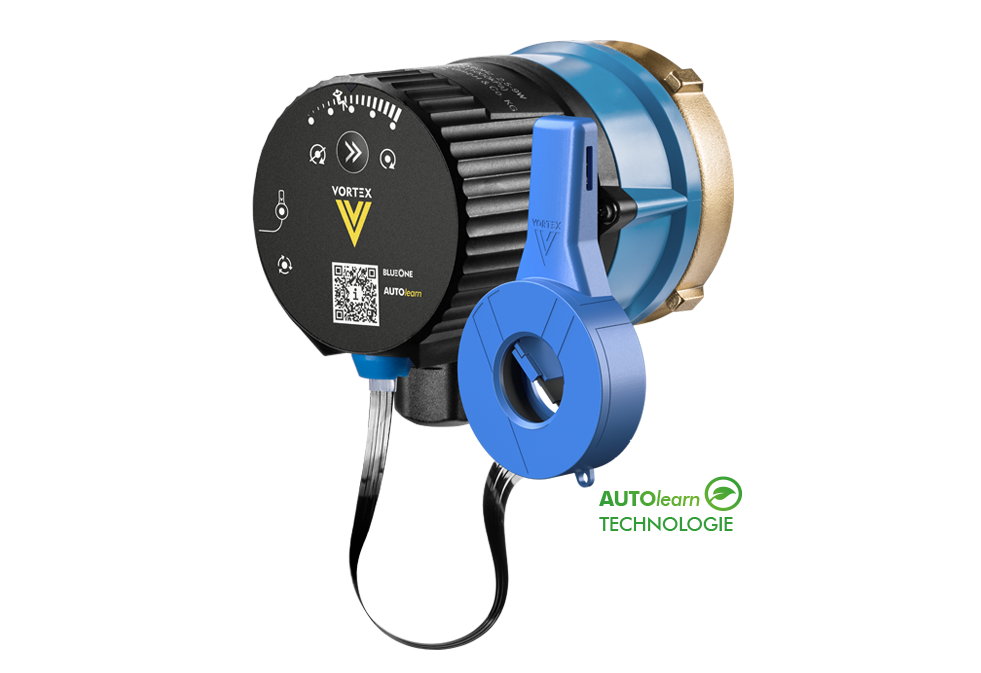

BWO 155 SL
| Electrical connection | 230 V~ |
| Control module | Self-learning module with AUTOlearn technology |

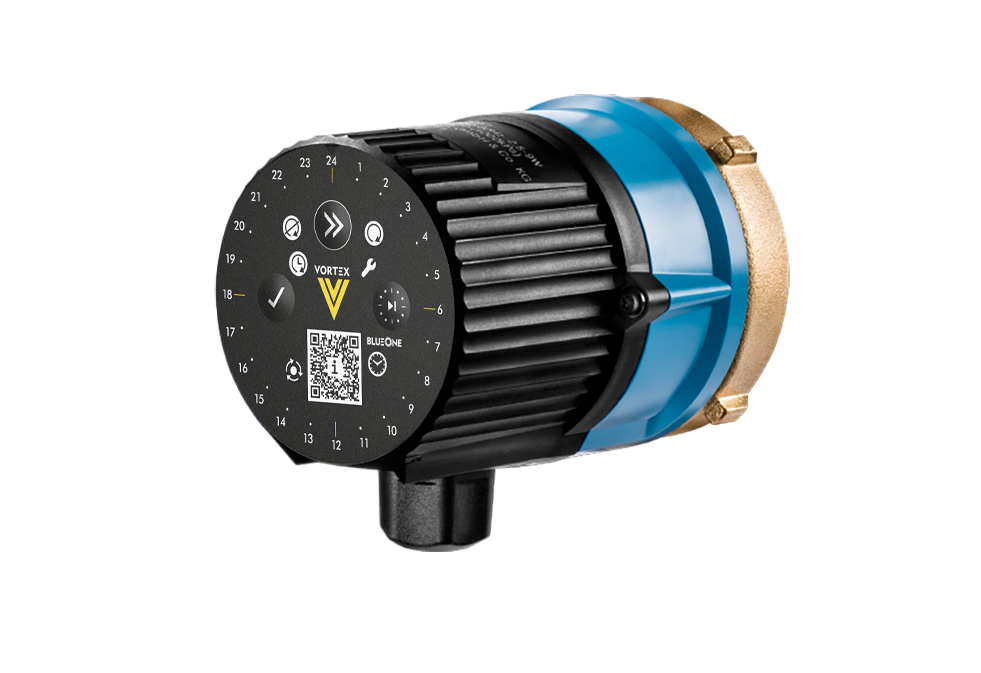

BWO 155 Z
| Electrical connection | 230 V~ |
| Control module | Digital timer |

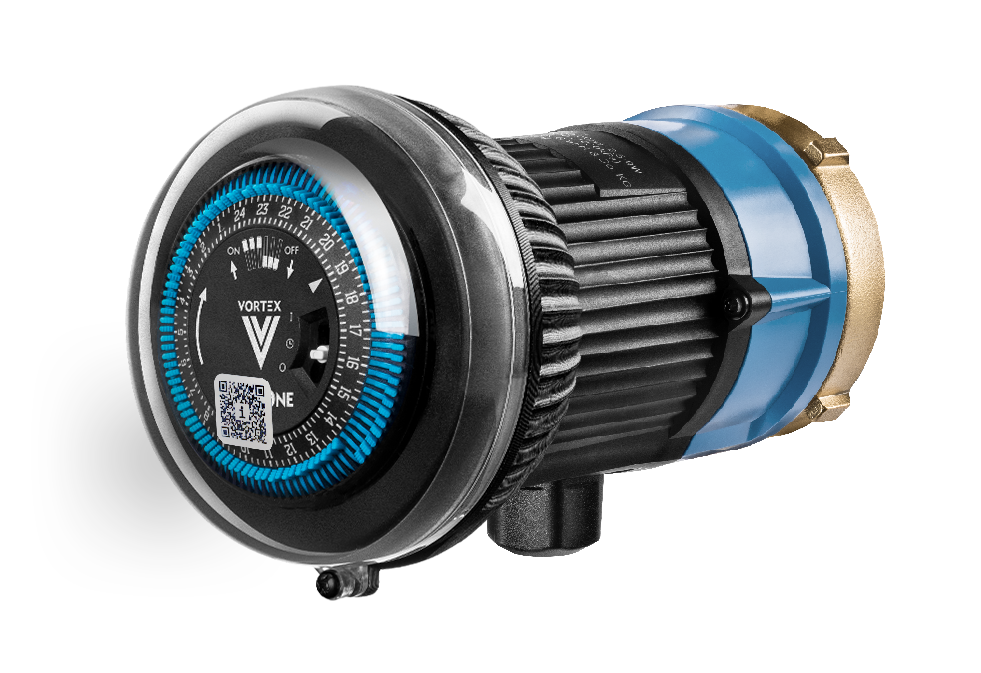

BWO 155 ZM
| Electrical connection | 230 V~ |
| Control module | Mechanical timer |

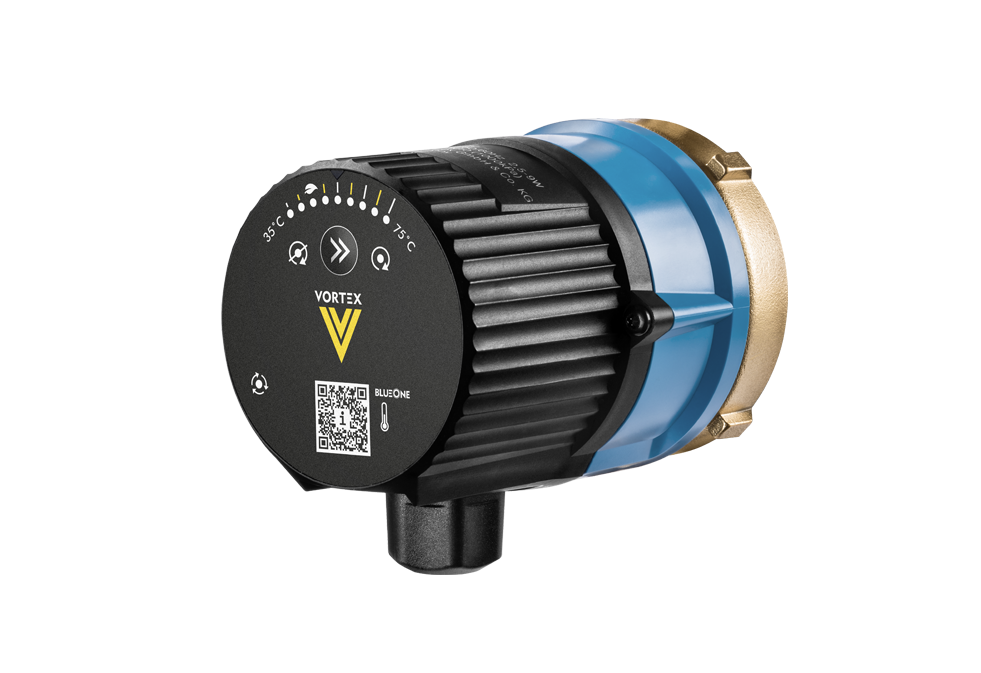

BWO 155 ERT
| Electrical connection | 230 V~ |
| Control module | Electronic control thermostat |

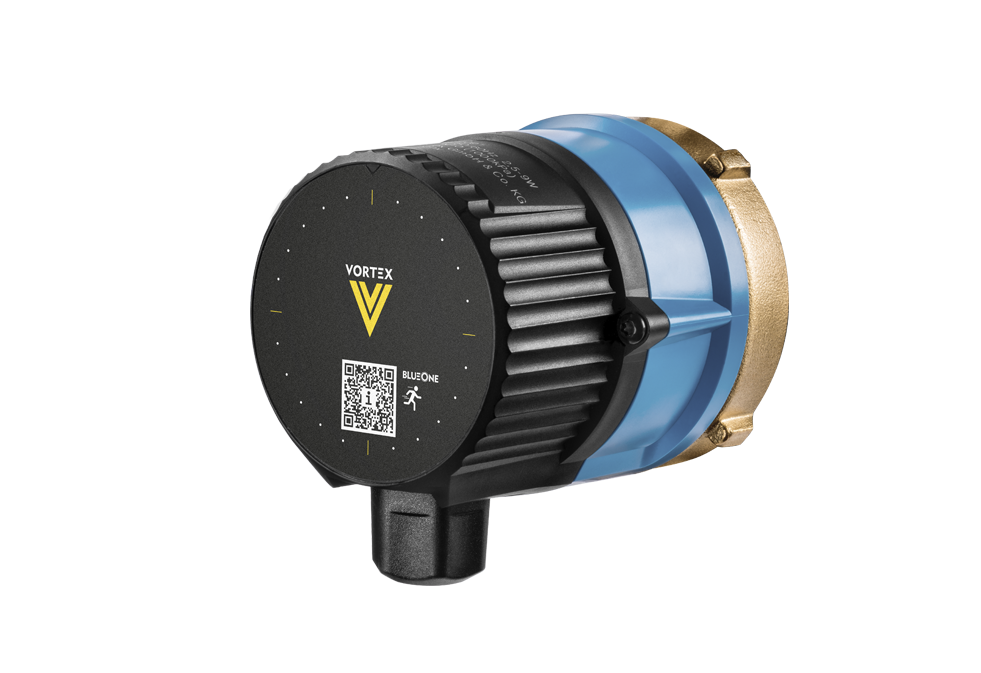

BWO 155
| Electrical connection | 230 V~ |
| Control module | Without control module (continuous operation) |

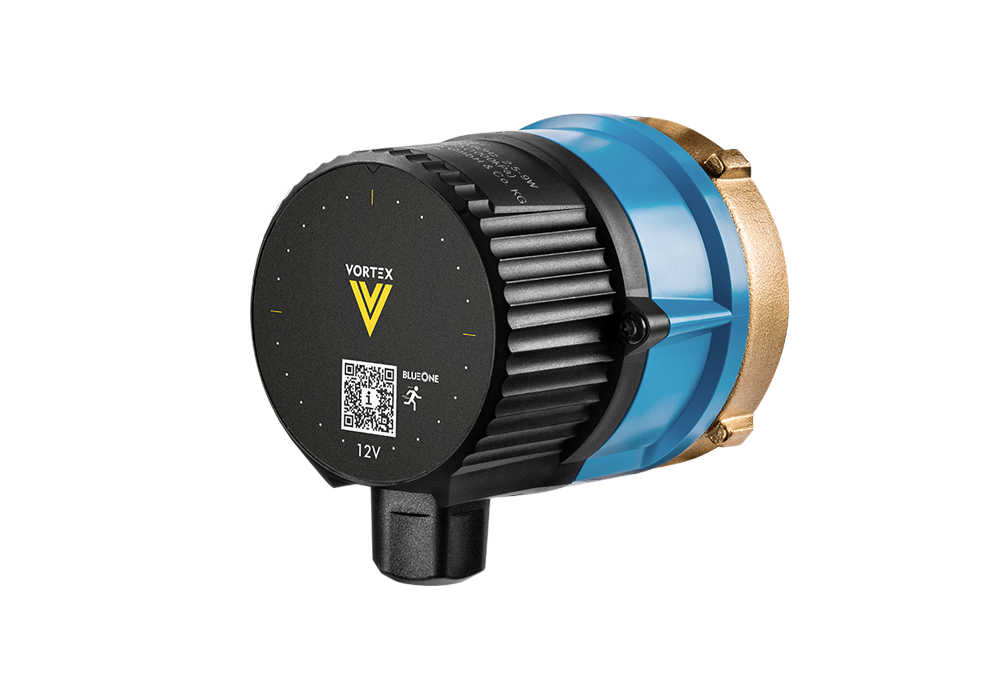

BWO 155 12V
| Electrical connection | 12 V DC |
| Control module | Without control module (continuous operation) |
DRY-RUN PROTECTION
The absence of water in the pump housing is automatically detected. Rotor operation is then repeatedly interrupted.
ALWAYS COMPATIBLE
Motor replacement made easy: the new universal motors are compatible with all commercially available pump housings.
EXTREMELY ECONOMICAL
Low power consumption (2.5 – 9 watts) – yet still powerful (0.6 – max. 1.3 mWC).
EXTREMELY QUIET
The pump operates almost silently, thanks to the special design of the electronically commutated DC motor.
EXTREMELY COMPACT
VORTEX has reduced the length of the motor to an absolute minimum – the perfect solution for tricky spaces.
ADJUSTABLE SPEED
Done in a flash: adjust the energy consumption and output.
EASY TO OPERATE
One-touch technology for all pumps with a control module. Your benefit: you control all functions at the press of a button.
SIMPLE CONNECTION
The pump motor can be replaced using only a few tools. No tools at all are required for the cable connection.
UNRESTRICTED WATER HARDNESS
Hard water is no problem for the VORTEX spherical motor. There are no restrictions at higher water temperatures.
