CIRKULATIONKIT
ALL-IN-ONE-SOLUTION
FOR ALL BWO 155 UNIVERSAL MOTORS

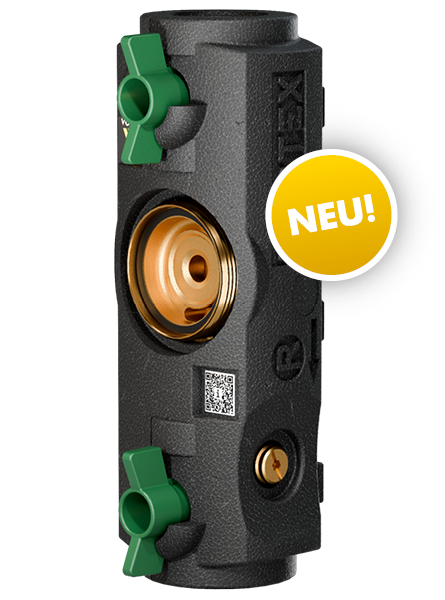

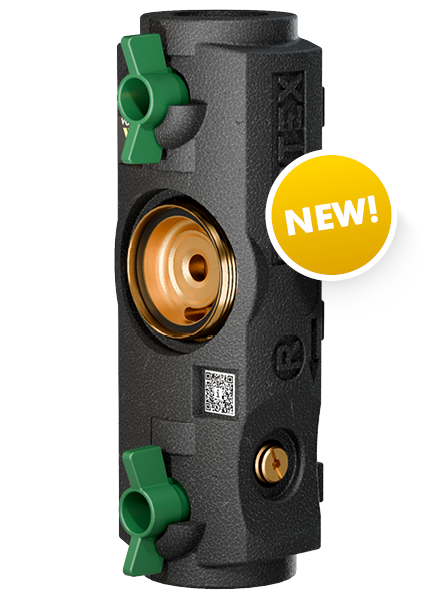

CIRKULATIONKIT
ALL-IN-ONE SOLUTION FOR ALL BWO 155 UNIVERSAL MOTORS

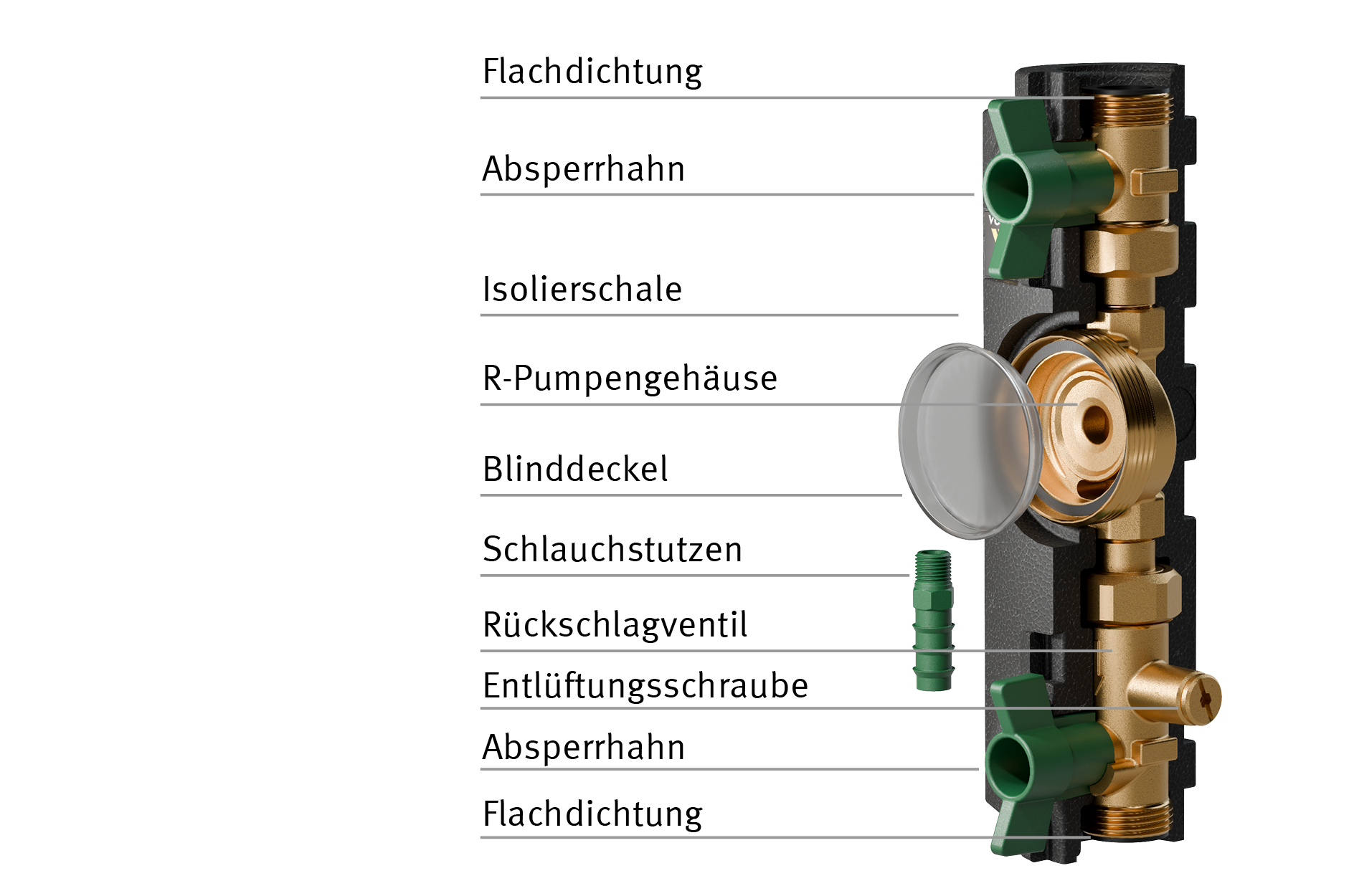

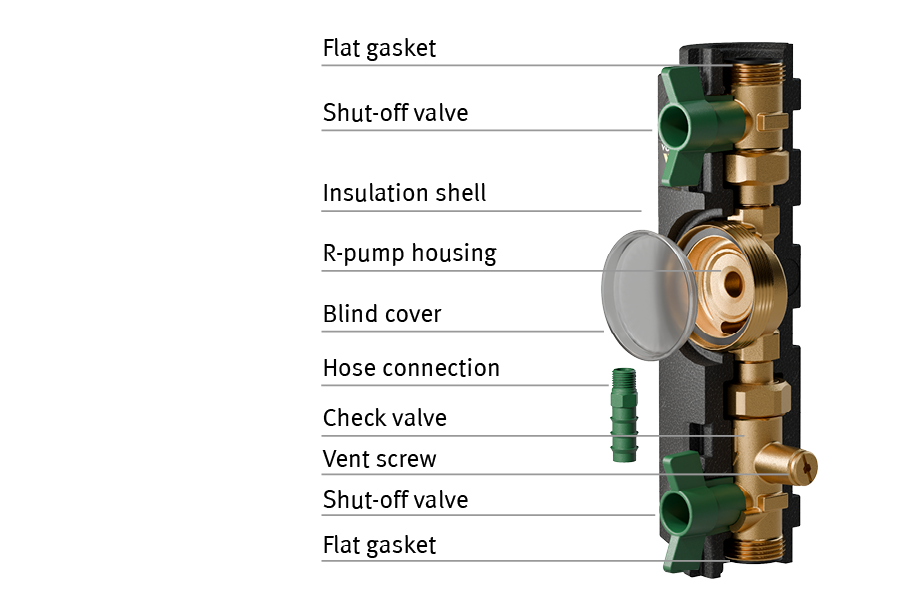

Easy installation thanks to factory-fitted shut-off valves with an integrated bleed screw and non-return valve.
The unit is supplied complete with an R-pump housing, an insulation shell, an enclosed hose connector for venting and 2 flat gaskets.
The component is leak-tested before delivery.
Order number 399-101-123
TECHNICAL DATA

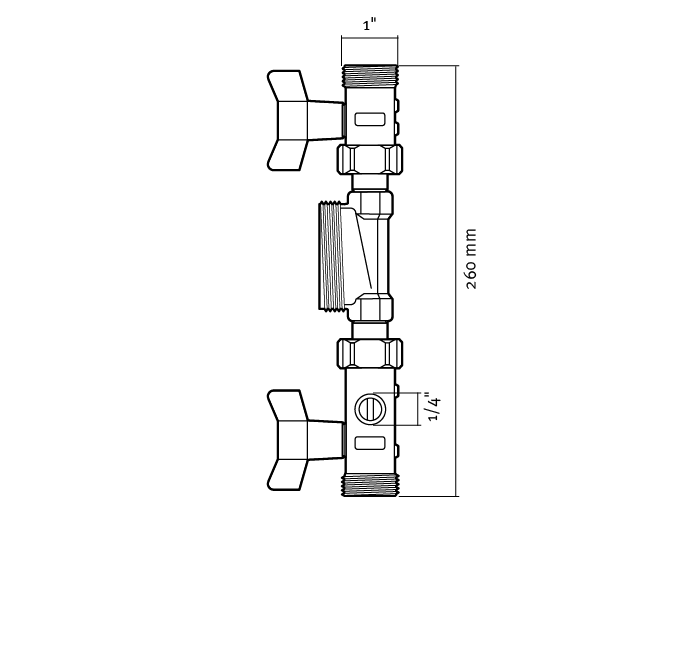

| Installation Length | 260 mm |
| Installation Width | 95 mm |
| Installation Depth | 105 mm |
| Temperature resistance | 2-95 ° C |
| Permissible Water Hardness | unlimeted |
| Pressure resistance | 10 bar |
| Connections | G1 male thread |

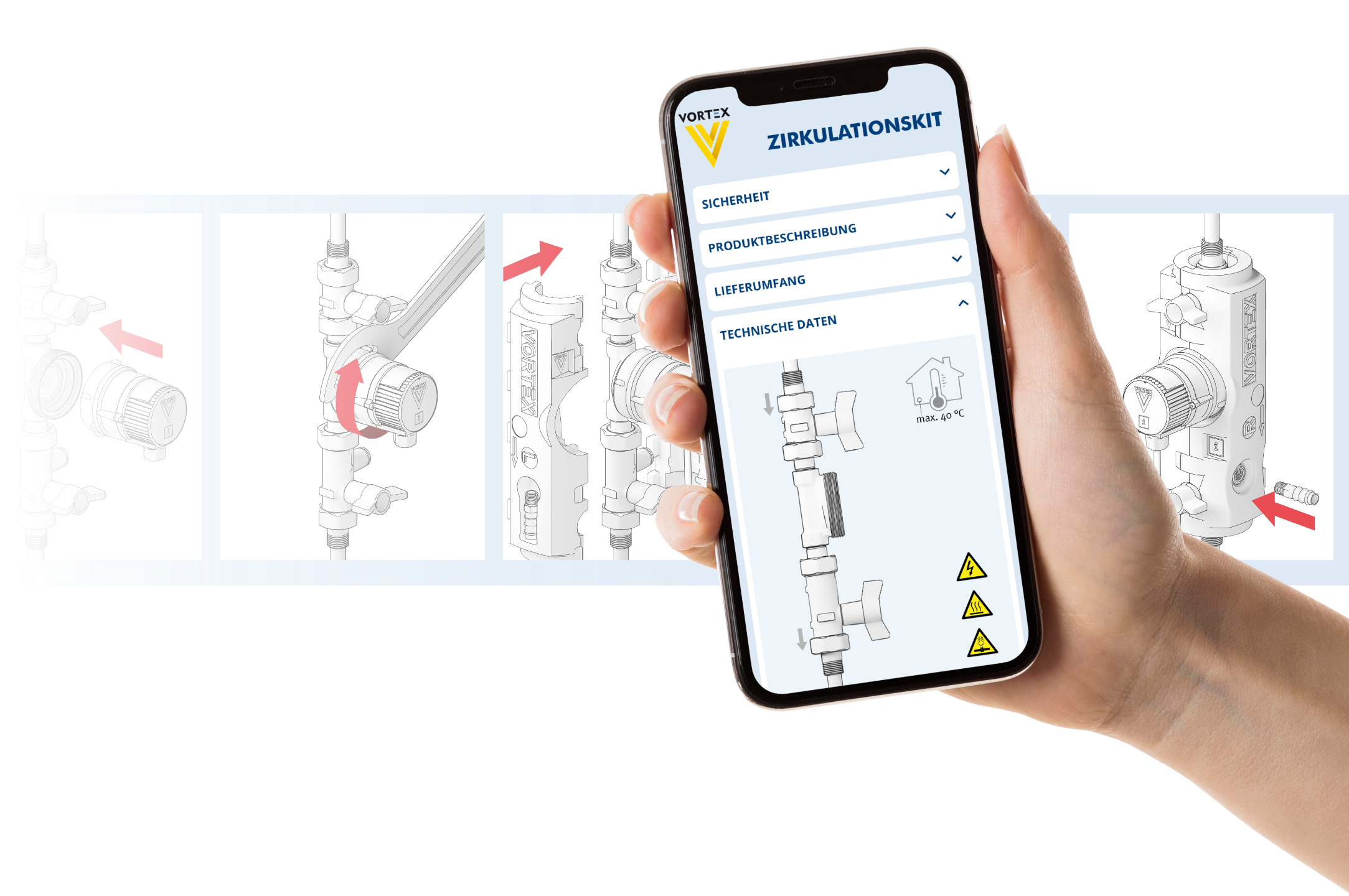

With digital user Manual
Less paper and always at your fingertips
With our latest innovation you can access the digital user manual directly on your smartphone. And you don’t even need an app. Simply scan the QR code on the insulated tray, and you’ll be taken straight to the table of contents. Without having to flip through pages, you’ll get the information you need right away. Each step is clearly explained with text and images. Always with you and always up to date.
> Quality made in Germany
The VORTEX service philosophy: direct, personal and competent. Because our customers’ satisfaction is the key to our success. VORTEX is flexible to provide the highest level of customer service and innovative to ensure maximum product quality.
EASY INSTALLATION
FULLY PRE-ASSEMBLED
EASY VENTING
WELL INSULATED
LEAK-TESTED
SUITABLE FOR ALL WATER HARDNESS LEVELS
