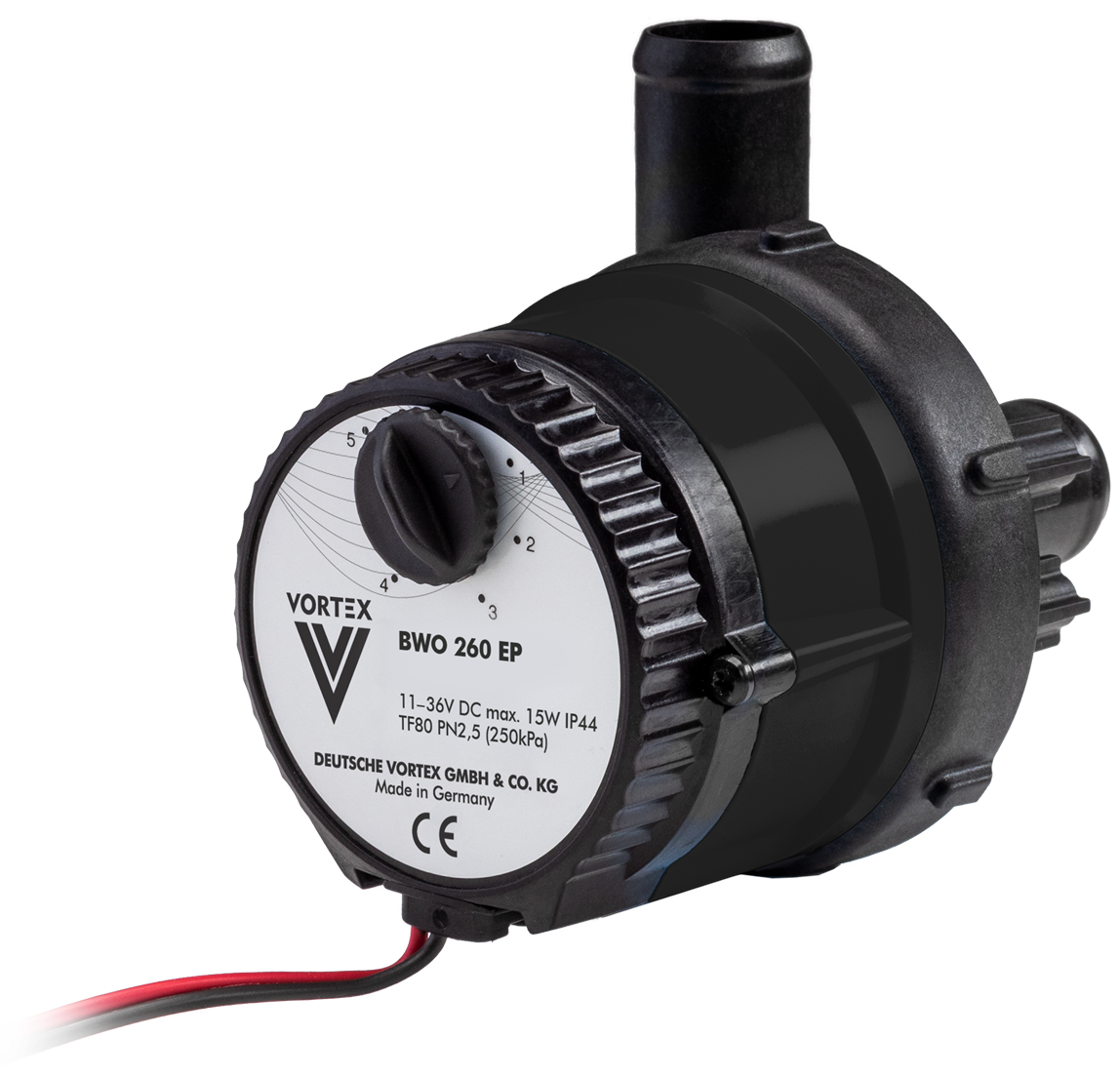

BWO 260
FOR MEDIUM HEATING AND COOLING CIRCUITS IN MOBILE SYSTEMS
Highly efficient circulator with excellent smoothness, with 90° composite pump housing, suitable for glycol/water-mixtures and other liquids.
Description BWO 260
Pump
| Max. delivery head | 2.0 mWC 1.9 mWC (from summer 2026) |
| IP rating | IP 44 |
| Pressure resistance | 2.5 bar |
| Liquid temperatures | -15°C up to +75°C |
| Liquid | water or glycol/water-mixtures (max. 50% glycol) |
| Power consumption | max. 19 W max. 15 W (from summer 2026) |
| Pump housing | 90° composite pump housing |
Options
- 12V DC or 24V DC
- 11 - 36 V DC (from summer 2026)
- fixed or variable speed (manually or PWM controlled)
- 2- or 3-wire cabled electrical connection
Curves
Measurements Made to measure
