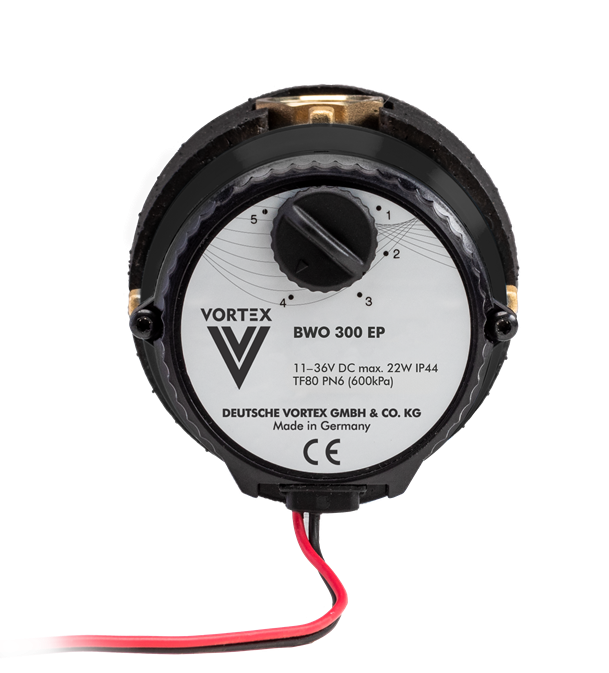

BWO 300
FOR SMALL WATER, HEATING AND COOLING CIRCUITS
Highly efficient circulator with excellent smoothness, with lead-free brass pump housing, suitable for water, glycol/water-mixtures and other liquids.
Description BWO 300
Pump
| Max. delivery head | 2.6 mWC 2.5 mWC (from summer 2026) |
| IP rating | IP 44 / IP 56 (PWM-version) |
| Pressure resistance | 10 bar |
| Liquid temperatures | -15 °C up to +75 °C |
| Liquids | water or glycol/water-mixtures (max. 50% glycol) |
| Power consumption | max. 24 W max. 22 W (from summer 2026) |
| Pump housing | brass, 1/2" |
Options
- 12V DC or 24V DC
- 11 - 36 V DC (from summer 2026)
- fixed or variable speed (manually or PWM controlled)
- 2- or 3-wire cabled electrical connection
- Semi-potted motor

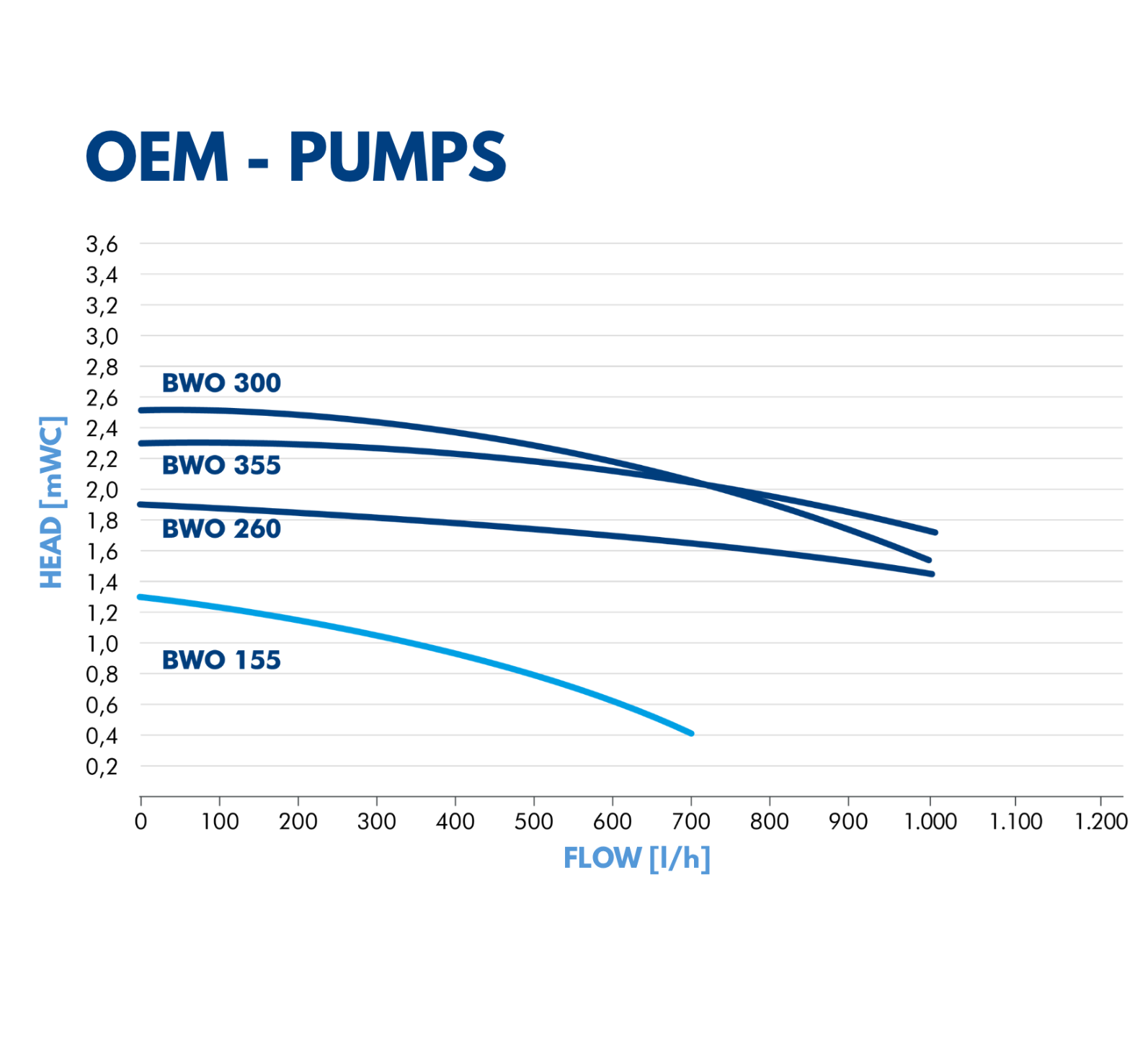

Curves
