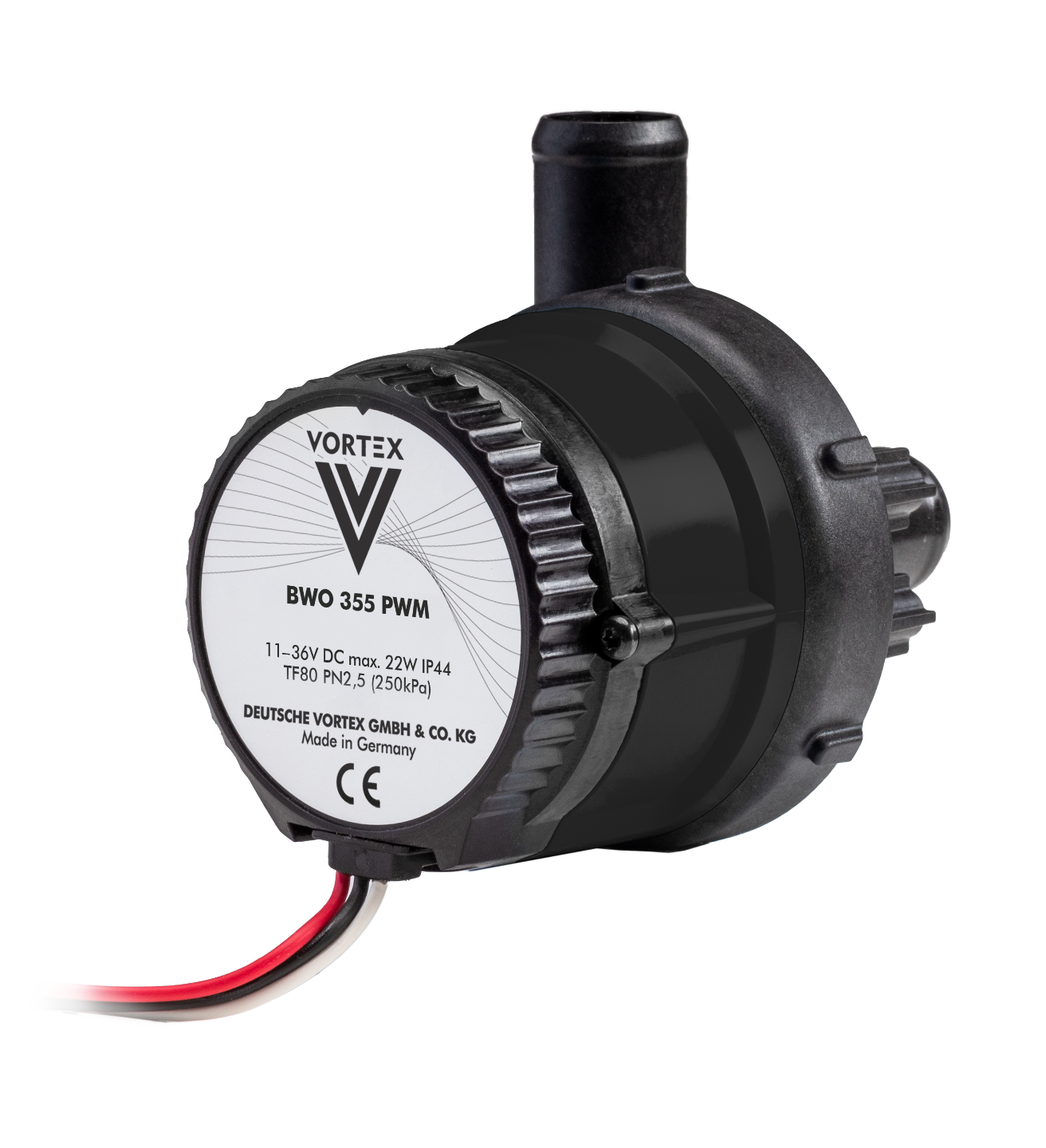

BWO 355
FOR MEDIUM HEATING AND COOLING CIRCUITS IN MOBILE SYSTEMS
Highly efficient circulator with excellent smoothness, with 90° composite pump housing, suitable for glycol/water-mixtures and other liquids.
Description BWO 355
Pump
| Max. delivery head | 2.5 mWC 2.3 mWC |
| IP rating | IP 44 / IP 56 (PWM-version) |
| Pressure resistance | 2.5 bar |
| Liquid temperatures | -15°C up to +75°C |
| Liquids | water or glycol/water-mixtures (max. 50% glycol) |
| Power consumption | max. 24 W max. 22 W (from summer 2026) |
| Pump housing | 90° composite pump housing |
Options
- 12V DC or 24V DC
- 11 - 36 V DC (from summer 2026)
- fixed or variable speed (manually or PWM controlled)
- 2- or 3-wire cabled electrical connection
- Semi-potted motor
