economy

☰

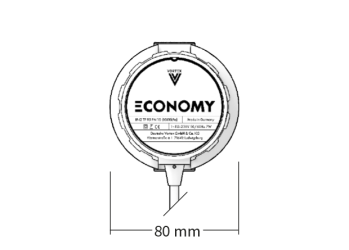

  • Compact 85 mm installation length
  • Supplied with 1.5 m connecting cable
  • Dry-running protection
  • Unrestricted permissible water hardness
  • Thermal insulation shell included
  • Reliable quality and performance
  • Easy installation

German Engineering for Cost-Effective DHW Circulation

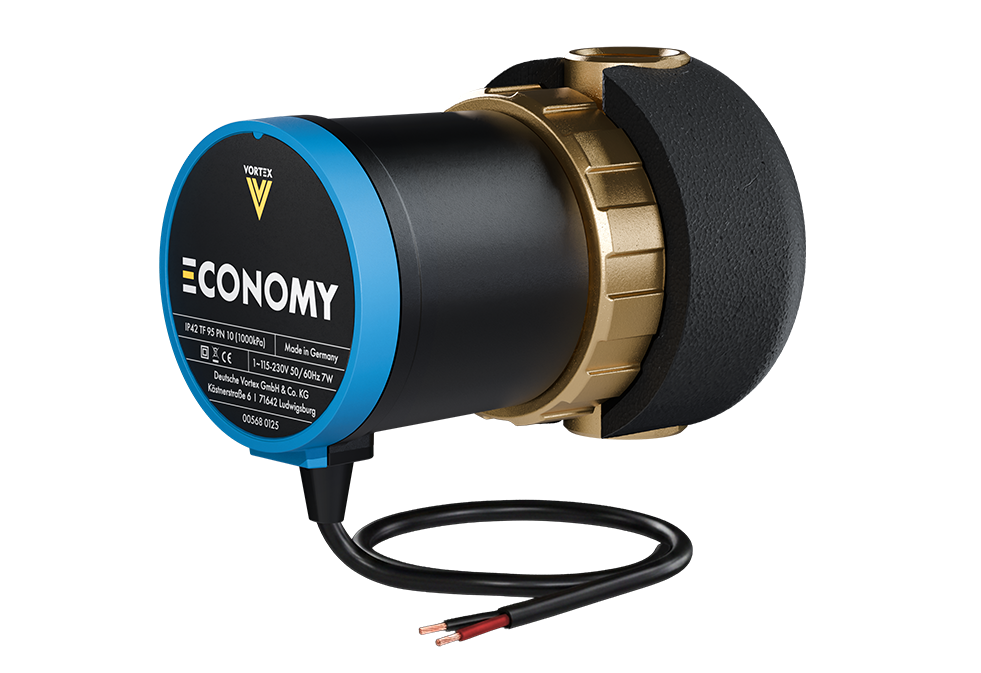

The VORTEX ECONOMY brings proven VORTEX engineering to cost-effective DHW circulation applications.
At its core is a high-quality spherical motor design, developed for smooth operation, maximum reliability and a long service life.

Compact, robust and easy to install, the pump is designed for dependable operation in drinking water systems.

Engineered & Made in Europe

Pressure resistance

 10 bar (1000 kPa)

Temperature resistance

 95 °C

Media temperature

 max. 75 °C

Ambient temperature

 max. 40 °C

Permissible water hardness

 unrestricted

Dry-running protection

 Yes

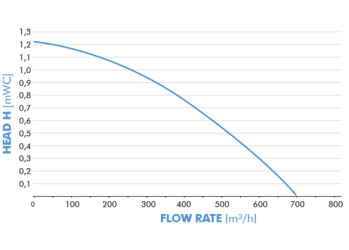

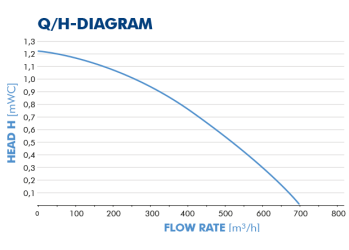

Max. delivery head

 1,2 mWS

Max. pump rate

 700 l/h

Power consumption

 7 W

Electr. connection

1~115-230 V / 50-60 Hz

IP rating

IP 42
