- Three control modes
- Power plug for fast and easy mains connection
- Dry-running protection
- Quiet operation
- Reliable quality and performance
- Easy installation
German Engineering for Cost-Effective DHW Circulation

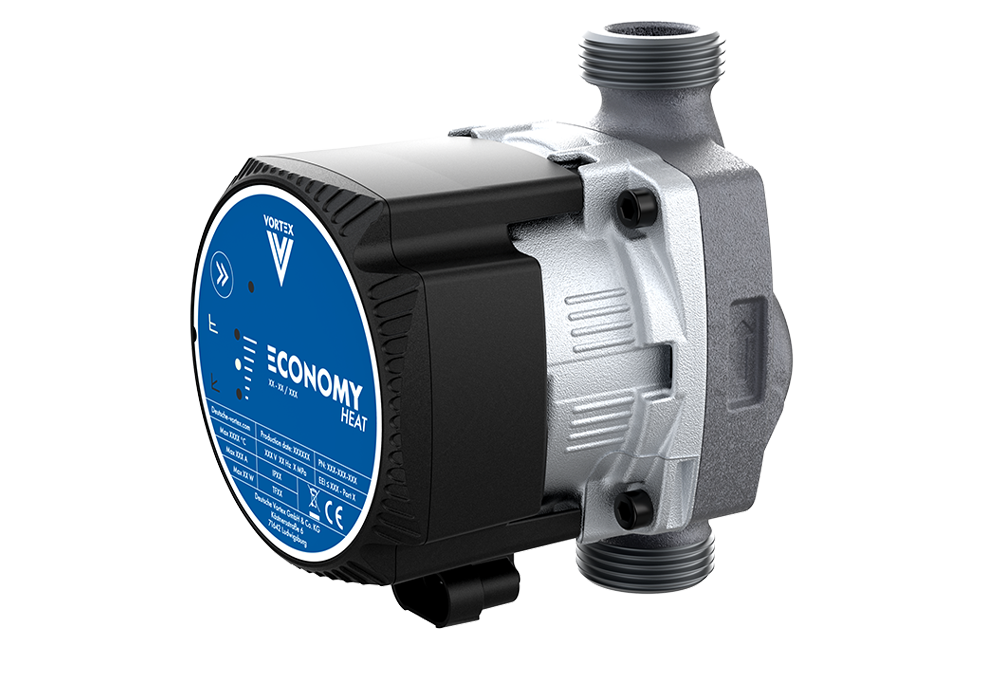

The VORTEX ECONOMY HEAT brings proven VORTEX engineering to cost-effective heating systems. Robust and easy to install, the pump is designed for dependable operation in heating systems.
The ECONOMY HEAT comes with three control modes: Constant Pressure, Proportional Pressure and Constant Curve Mode.
Engineered & Made in Europe
Pressure resistance |
10 bar (1000 kPa) |
Media temperature |
max. 95 °C |
Ambient temperature |
max. 40 °C |
Dry-running protection |
Yes |
Max. delivery head |
6 m |
Max. pump rate |
3,5 m³/h |
Power consumption |
4 – 41 W |
Electr. connection | 1~230 V / 50 Hz |
IP rating | IP 44 |
Downloads
Economy Heat

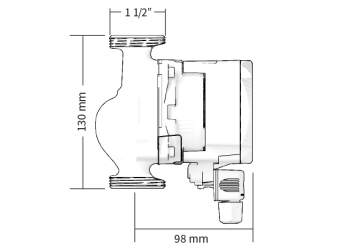

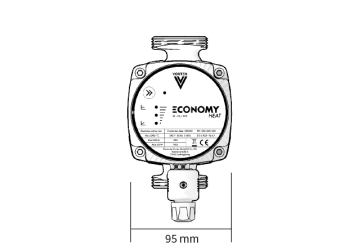

dimensions

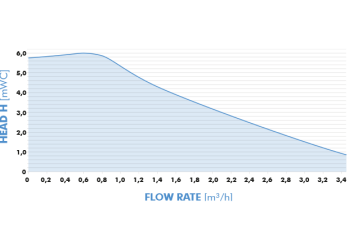

Q/H-diagram
